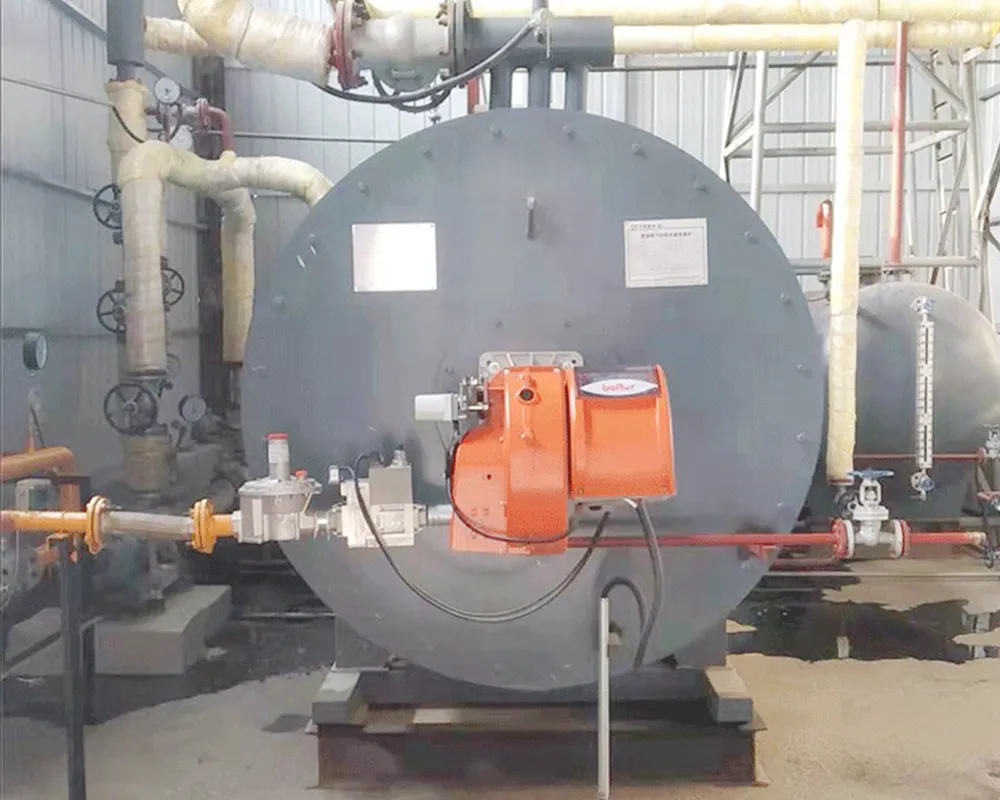

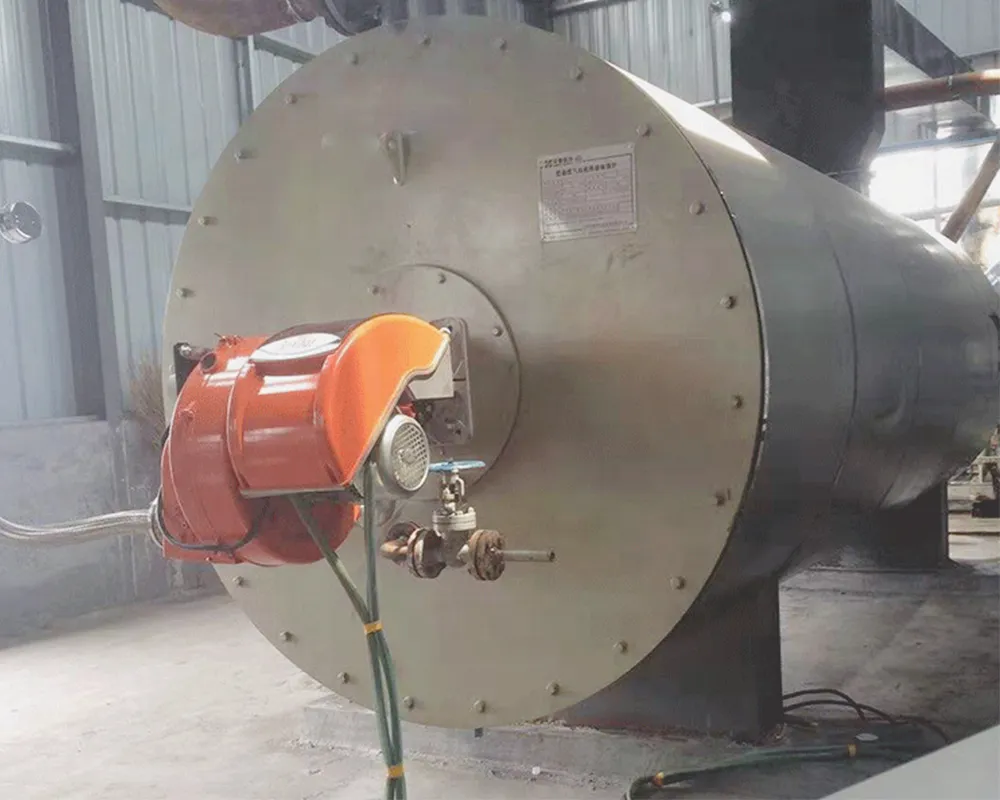

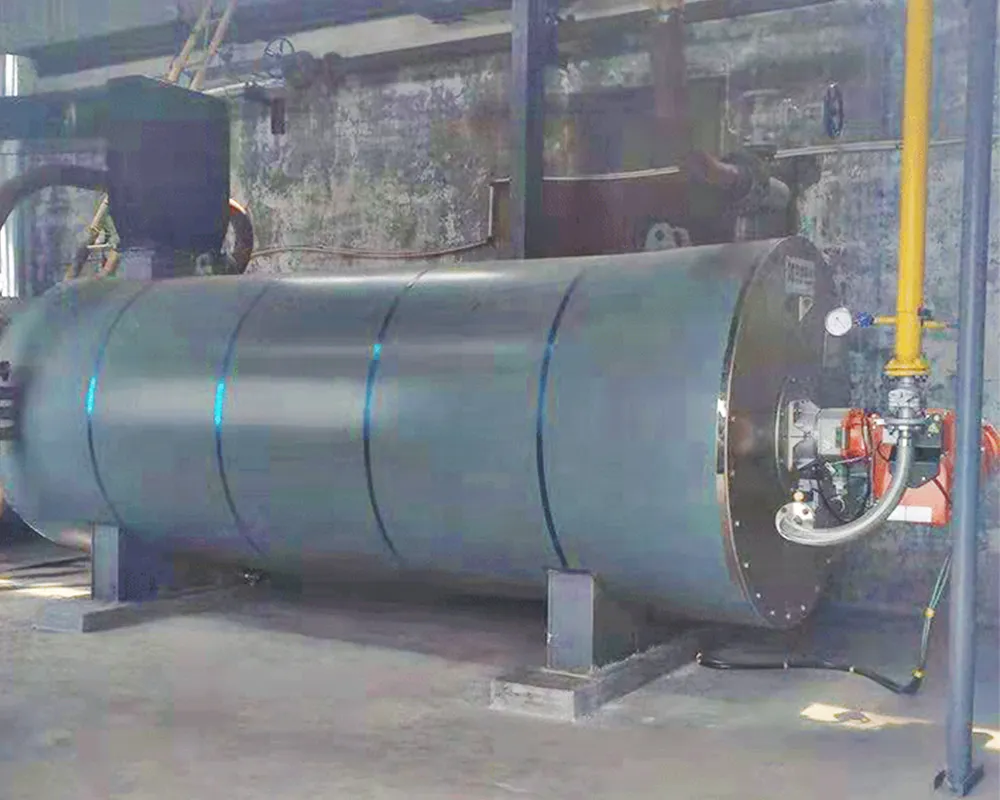

Thermal Oil Boiler
YY (Q) W series heat transfer oil boiler is a fast installation, energy-saving, and safe boiler with the characteristics of high heat transfer temperature (320 ℃) and low working pressure (0.8Mpa).
The heat transfer oil is pressurized by a circulating oil pump, heated and circulated in a large-diameter closed coil, and then transferred to the equipment that needs to be heated, and then returned to the boiler for reheating.
The high-temperature flue gas after combustion enters the economizer (or waste heat boiler) designed at the end of the boiler, which uses waste heat to produce high-temperature water or steam, improving the boiler utilization efficiency.
Thermal power:
120-10000KW
Design pressure:
0.8Mpa
Maximum operating temperature:
320 ℃
Fuel:
natural gas, liquefied petroleum gas, liquefied natural gas, compressed natural gas, biogas, urban gas, diesel, heavy oil, petroleum and natural gas.
Product Video
Product Advantage
Three way flue gas design with high thermal efficiency

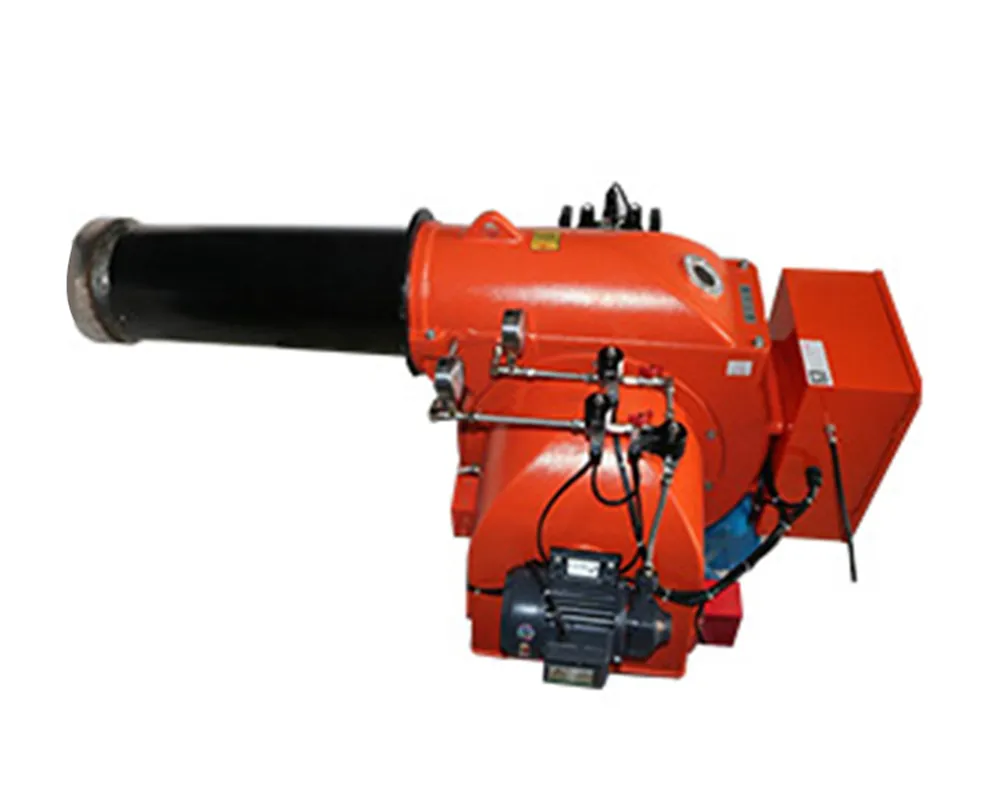

Configure globally renowned brand combustion engines
The safety chain system ensures stable operation
Fully automated operation, saving labor costs

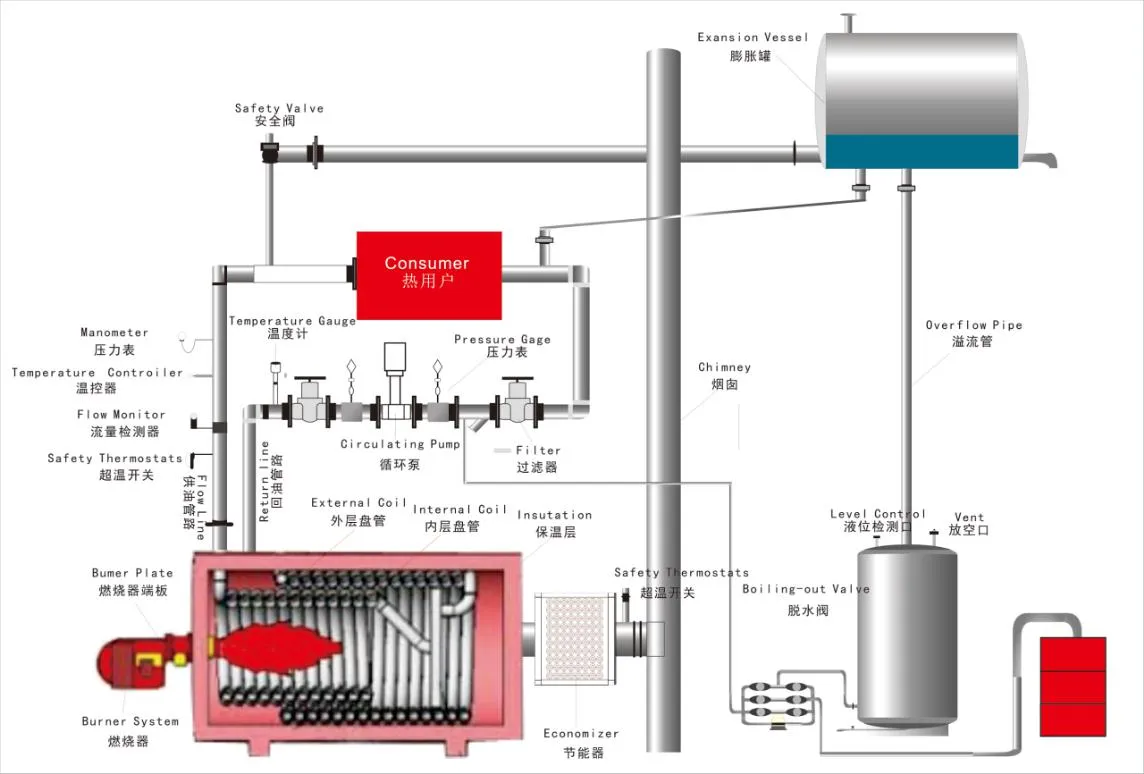

Product Structure
Product Parameters
WNS Series Steam Boiler Main Technical Parameters
| Model | Rated Power | Rated Voltage | Thermal Efficiency | Medium outlet Temperature | Medium Reflux Temperature | Size | Weight |
| (kw) | (MPa) | (%) | (℃) | (℃) | L×W×H (m) | (t) | |
| YY(Q)W-700Y(Q) | 700 | 0.8/1.0 | ≥93 | 320 | 280 | 3.2×2×2.1 | 4.9 |
| YY(Q)W-1000Y(Q) | 1000 | 0.8/1.0 | ≥93 | 320 | 280 | 3.5×2×2.1 | 5.2 |
| YY(Q)W-1400Y(Q) | 1400 | 0.8/1.0 | ≥93 | 320 | 280 | 4.5×2×2.3 | 6.2 |
| YY(Q)W-2100Y(Q) | 2100 | 0.8/1.0 | ≥93 | 320 | 280 | 5.4×2.4×2.6 | 10 |
| YY(Q)W-3000Y(Q) | 3000 | 0.8/1.0 | ≥93 | 320 | 280 | 6×2.5×2.8 | 13 |
| YY(Q)W-4200Y(Q) | 4200 | 0.8/1.0 | ≥93 | 320 | 280 | 7.1×3×3.2 | 18 |
| YY(Q)W-6000Y(Q) | 6000 | 0.8/1.0 | ≥93 | 320 | 280 | 8.1×3.2×3.5 | 26 |
| YY(Q)W-7000Y(Q) | 7000 | 0.8/1.0 | ≥93 | 320 | 280 | 9×3.4×3.7 | 30 |
Customize Your Boiler Solution
Tell us your need for boiler capacity in your industry, we will recommend the most suitable boiler model for you!
