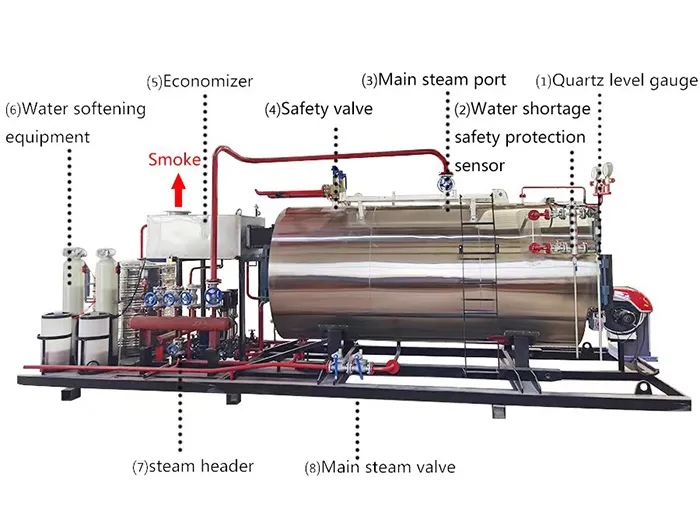

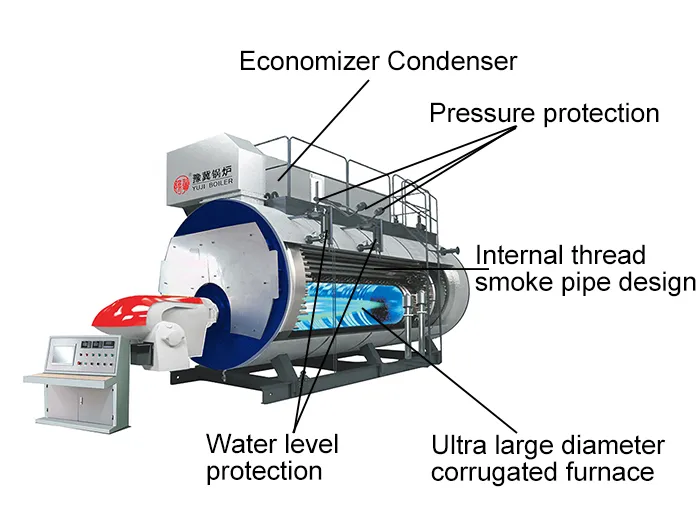

5.five-fold water level protection and triple pressure protection

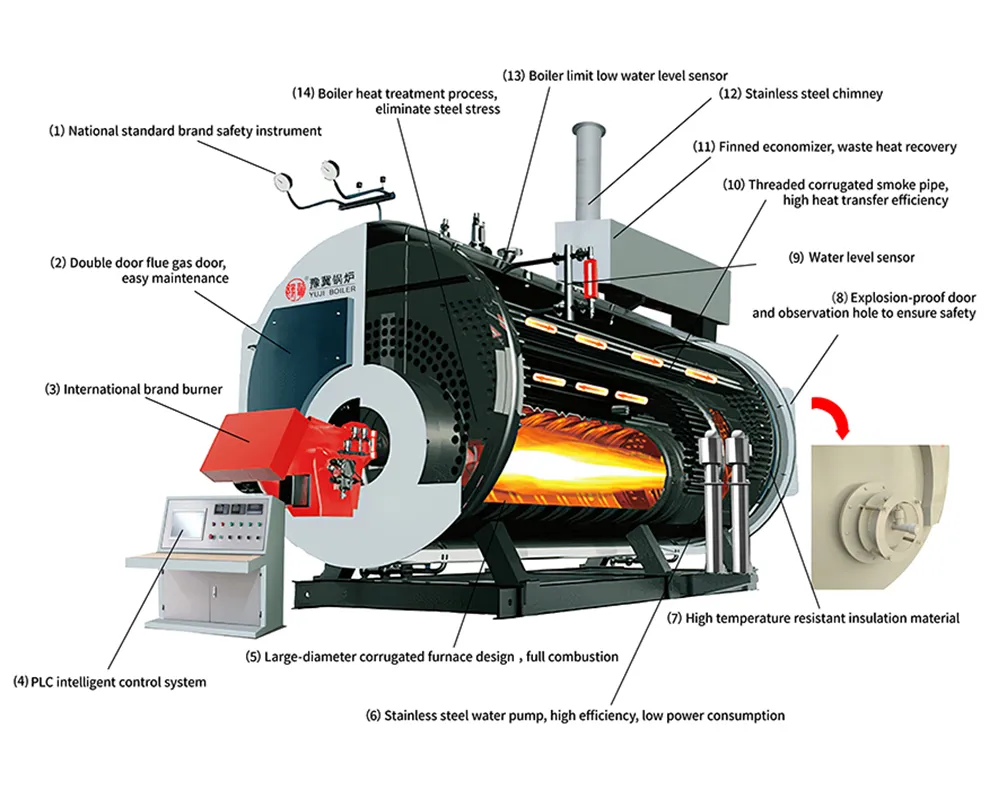

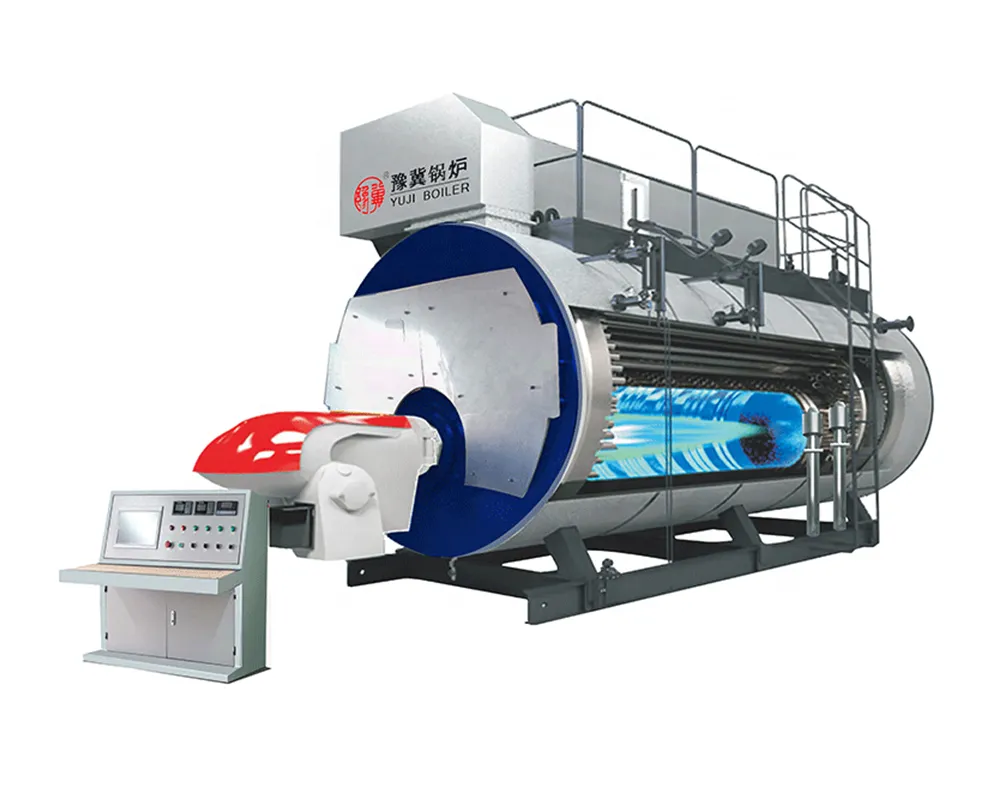

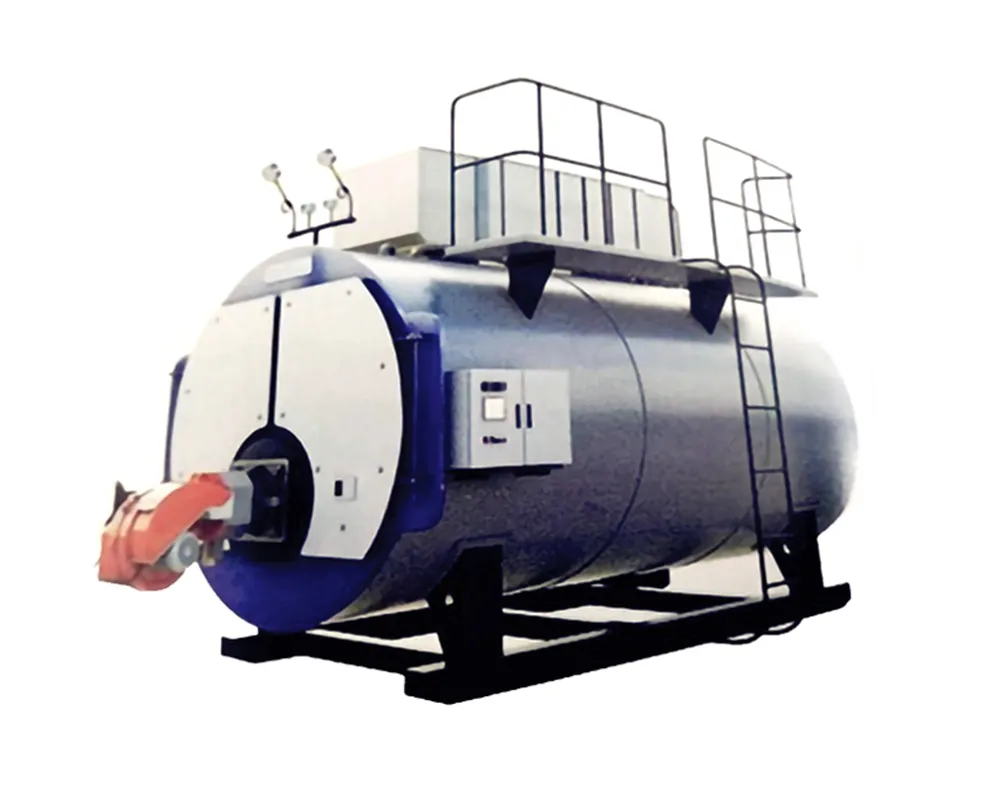

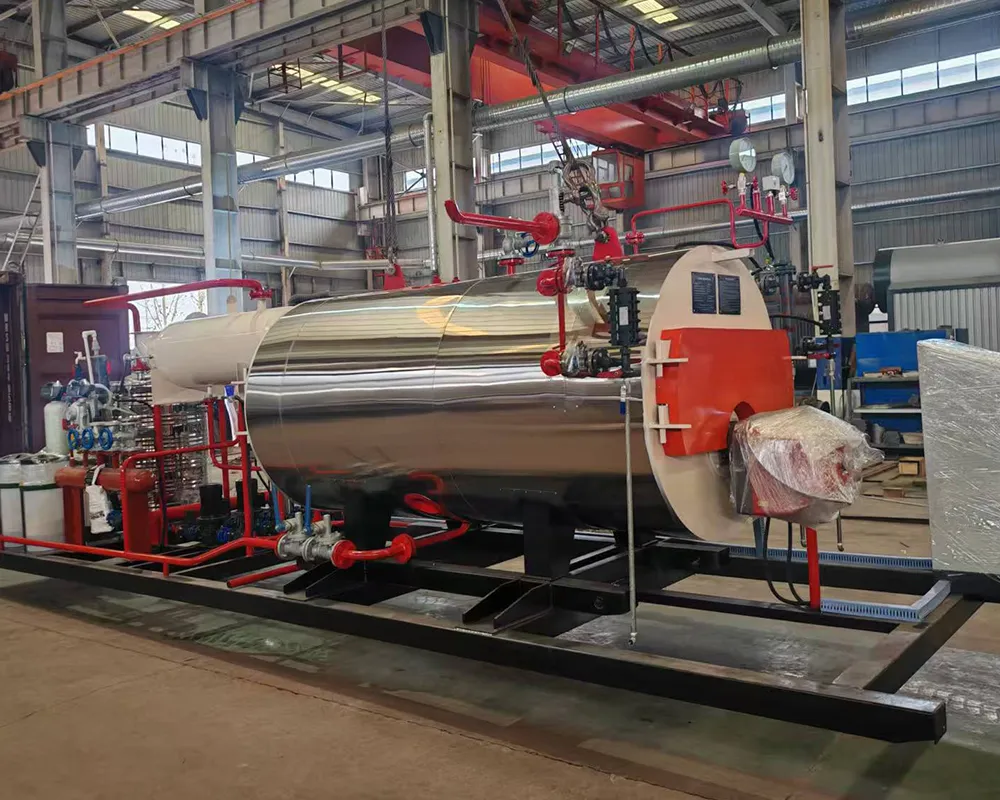

Oil Gas Fired Industrial Steam Boilers（WNS）

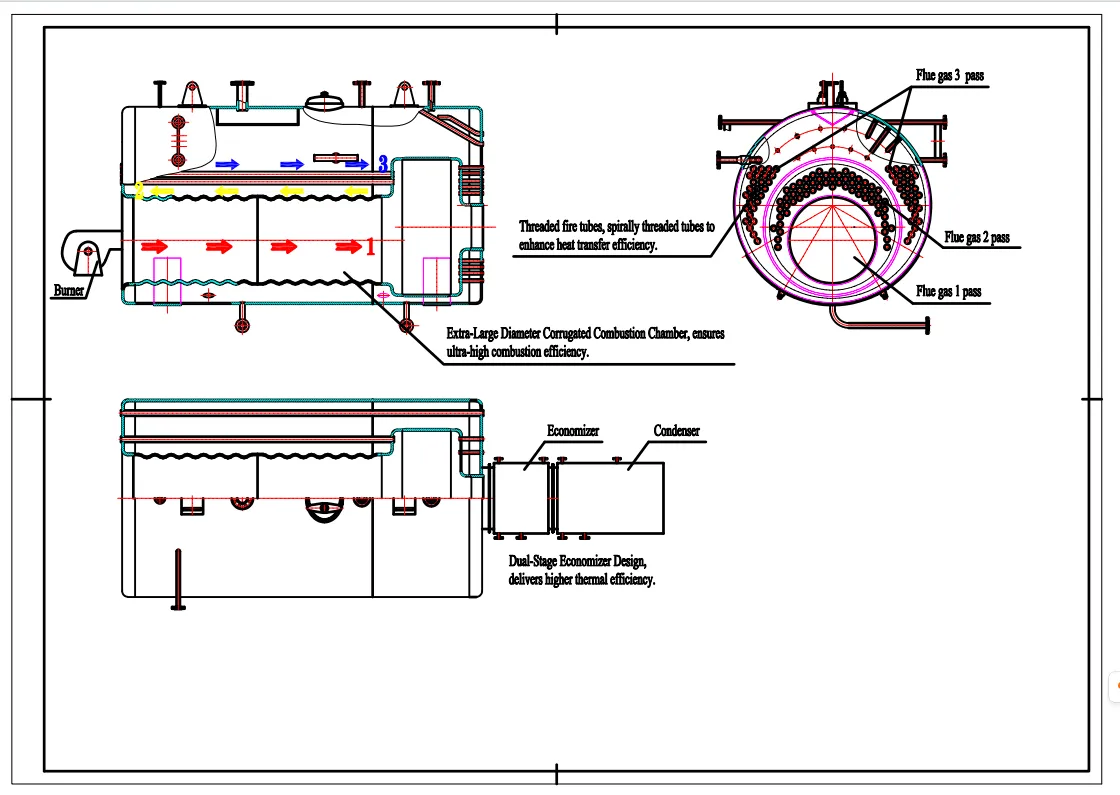

The WNS series oil and gas steam boiler adopts a three channel fully wet back spiral smoke tube design, which enhances heat transfer and improves thermal efficiency through turbulent flow of flue gas.

Steam Capacity: 0.5T/H-20T /H

Rated Working Pressure： 0.4Mpa ~ 2.5Mpa (Customizable)

Steam Temperature: 150°C – 226°C

Gaseous Fuels： Natural Gas, LPG, LNG, CNG, Biogas, Hydrogen, Town Gas

Liquid Fuels： Diesel, Heavy Oil (HFO), Waste Oil, Methanol

Special Fuels： Biomass Gas (Equipped with proprietary low-NOx burners)

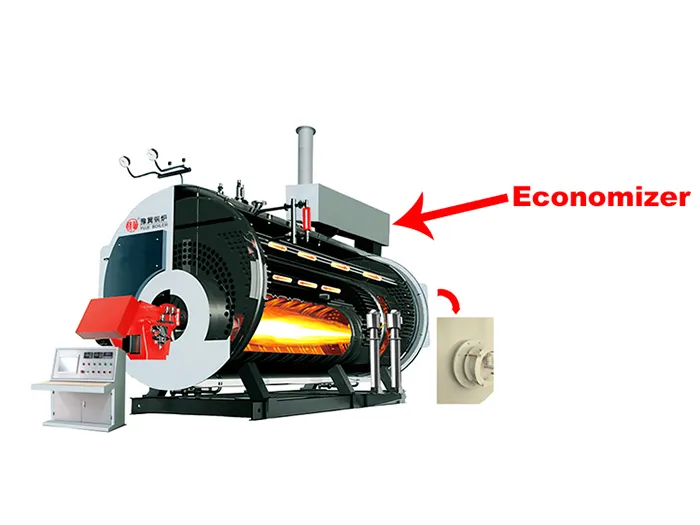

Thermal Efficiecy: ＞98%(With dual stage energy recovery system)

Application： Steam and heating are widely used in food, sugar, coffee, textiles, printing and dyeing, pharmaceuticals, building materials, brewery, rubber, chemicals, as well as central heating and daily operation in hospitals, hotels and schools.

Product Advantage

TECHNOLOGY&PROCESS

Laser drilling

Threaded pipe processing

UItra wide universal bending machine

Automatic welding lifting platform

Robot welding

Automatic welding production line

Mechanical experimental apparatus

Non destructive testing workshop

Paint workshop

Product Parameters

WNS Series Steam Boiler Main Technical Parameters

Model	Rated steam	Rated steam	Steam temperature	Thermal efficiency	Oil	Gas	Dimension	Weight
Model	capacity (t/h)	pressure (Mpa)	(℃)	(%)	(kg/h)	(Nm³/h)	(m)	(t)
WNS1-0.7/1.0-Y(Q)	1	0.7/1.0	194	≥98.36	61	73	3.2×1.9×2.2	4.9
WNS2-1.0/1.25-Y(Q)	2	1.0/1.25	194	≥98.36	121	145	4.2×2.3×2.5	8
WNS3-1.0/1.25-Y(Q)	3	1.0/1.25	194	≥98.36	182	217	4.5×2.1×2.4	9
WNS4-1.0/1.25-Y(Q)	4	1.0/1.25	194	≥98.36	243	289	5.0×2.3×2.6	11
WNS6-1.25/1.6-Y(Q)	6	1.25/1.6	194	≥98.36	367	435	5.4×2.4×2.7	18.6
WNS10-1.25/1.6-Y(Q)	10	1.25/1.6	194	≥98.36	601	735	6.3×2.7×3.2	20.5
WNS15-1.25/1.6-Y(Q)	15	1.25/1.6	194	≥98.36	906	1101	8.9×3.4×3.6	42
WNS20-1.25/1.6-Y(Q)	20	1.25/1.6	194	≥98.36	1211	1467	7.8×3.6×4.0	52
