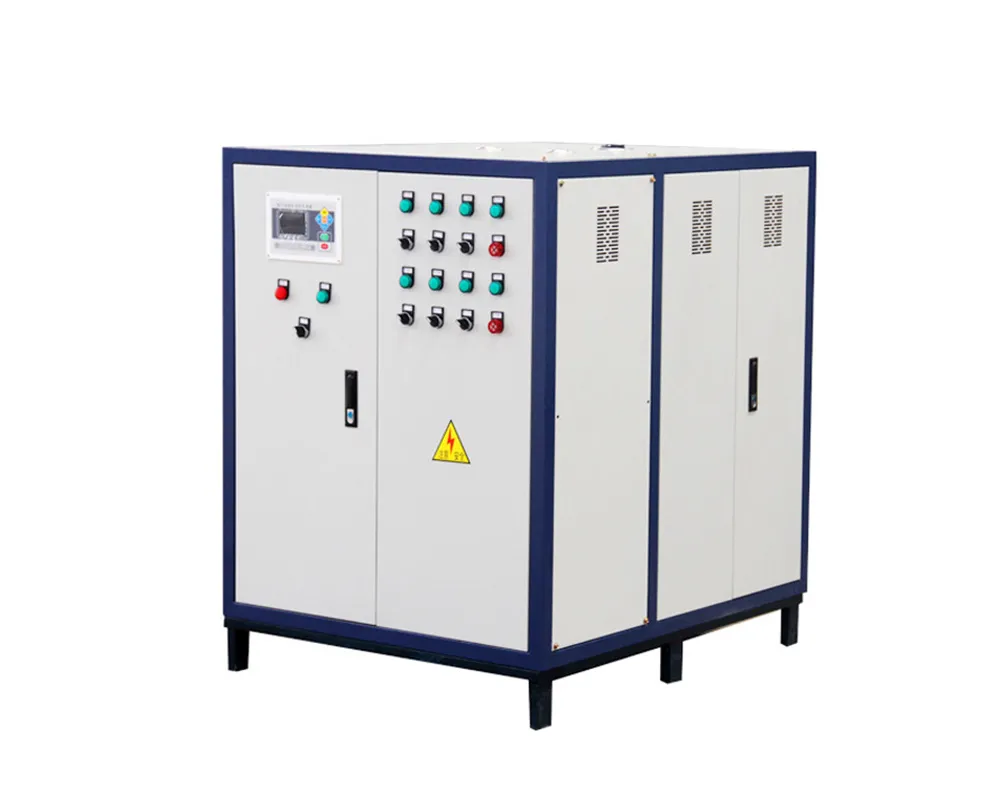

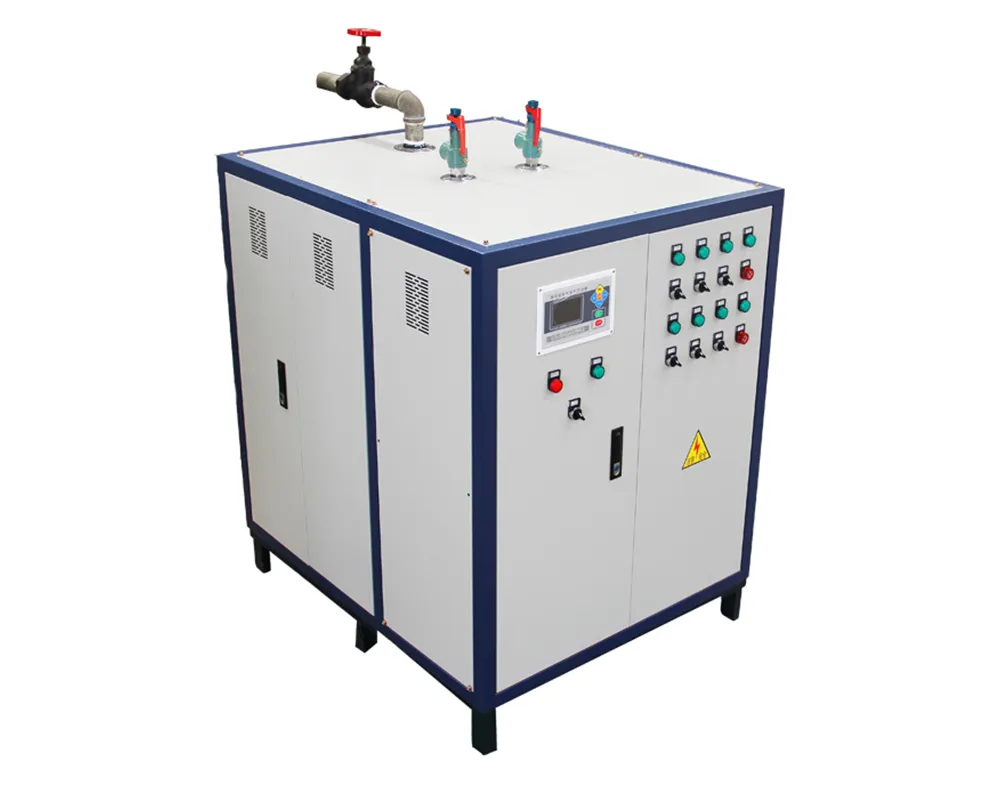

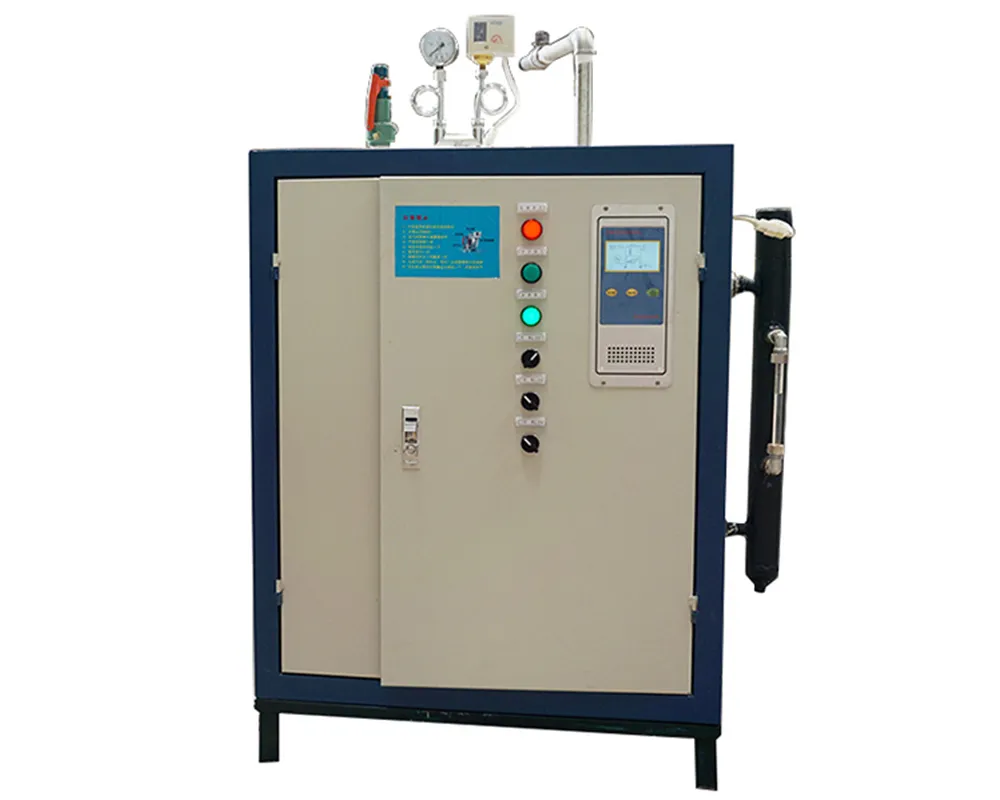

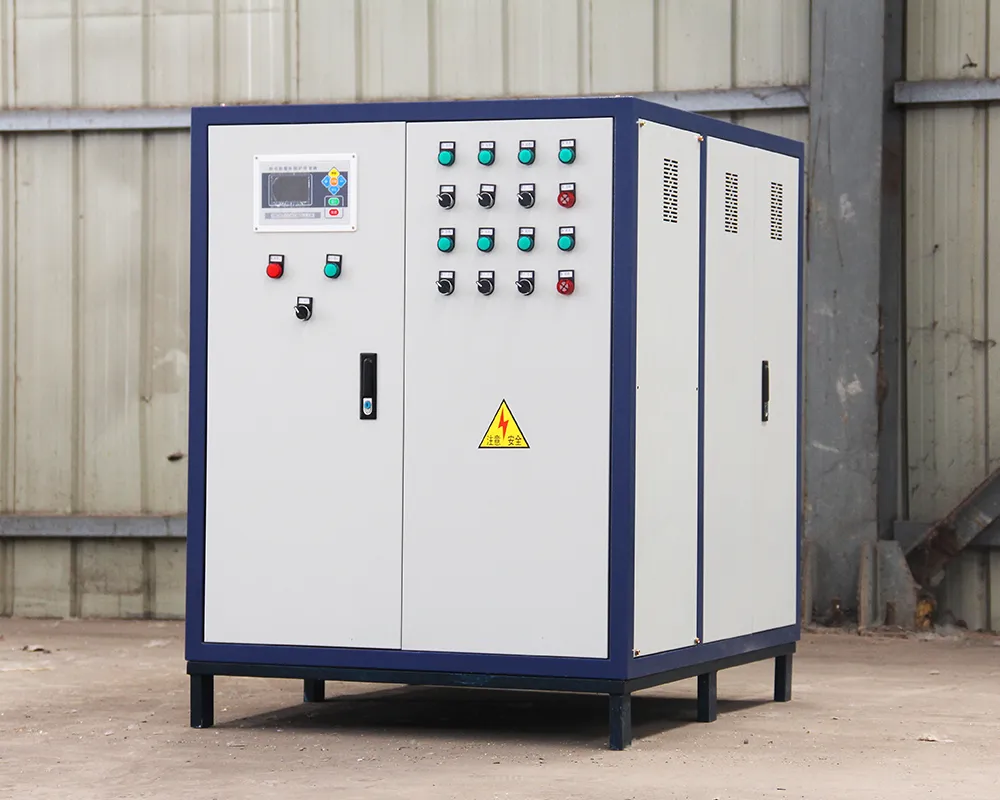

LDR electric heating vertical steam generator
The LDR electric heating vertical steam generator uses high-quality stainless steel heating tubes that can quickly generate steam (3-5 minutes) with high thermal efficiency. The overall pry assembly does not require on-site installation before leaving the factory. Multiple safety protections for water level and pressure ensure safe and stable operation.
Steam volume:
50-500kg/h
Steam pressure:
1-10 bar (0.1-1.0 Mpa) optional
Steam temperature:
100-184℃
Applications:
Various small-scale industries such as milk sterilization, clothing washing and ironing, high-temperature cleaning of food and beverages, maintenance of building components, and maintenance of cement products.
Product Video
Product Advantage
Rapid steam generation (3-5 minutes)
No on-site installation required
Safety production: low water level protection device to avoid dry burning
Multiple protections including safety valves, pressure gauges, and pressure controllers ensure safe and stable operation
Product Parameters
WNS Series Steam Boiler Main Technical Parameters
| Model | Rated steam | Rated steam | Steam temperature | Thermal efficiency | Oil | Gas | Dimension | Weight |
| capacity (t/h) | pressure (Mpa) | (℃) | (%) | (kg/h) | (Nm³/h) | (m) | (t) | |
| WNS1-0.7/1.0-Y(Q) | 1 | 0.7/1.0 | 194 | ≥98.36 | 61 | 73 | 3.2×1.9×2.2 | 4.9 |
| WNS2-1.0/1.25-Y(Q) | 2 | 1.0/1.25 | 194 | ≥98.36 | 121 | 145 | 4.2×2.3×2.5 | 8 |
| WNS3-1.0/1.25-Y(Q) | 3 | 1.0/1.25 | 194 | ≥98.36 | 182 | 217 | 4.5×2.1×2.4 | 9 |
| WNS4-1.0/1.25-Y(Q) | 4 | 1.0/1.25 | 194 | ≥98.36 | 243 | 289 | 5.0×2.3×2.6 | 11 |
| WNS6-1.25/1.6-Y(Q) | 6 | 1.25/1.6 | 194 | ≥98.36 | 367 | 435 | 5.4×2.4×2.7 | 18.6 |
| WNS10-1.25/1.6-Y(Q) | 10 | 1.25/1.6 | 194 | ≥98.36 | 601 | 735 | 6.3×2.7×3.2 | 20.5 |
| WNS15-1.25/1.6-Y(Q) | 15 | 1.25/1.6 | 194 | ≥98.36 | 906 | 1101 | 8.9×3.4×3.6 | 42 |
| WNS20-1.25/1.6-Y(Q) | 20 | 1.25/1.6 | 194 | ≥98.36 | 1211 | 1467 | 7.8×3.6×4.0 | 52 |
Customize Your Boiler Solution
Tell us your need for boiler capacity in your industry, we will recommend the most suitable boiler model for you!
