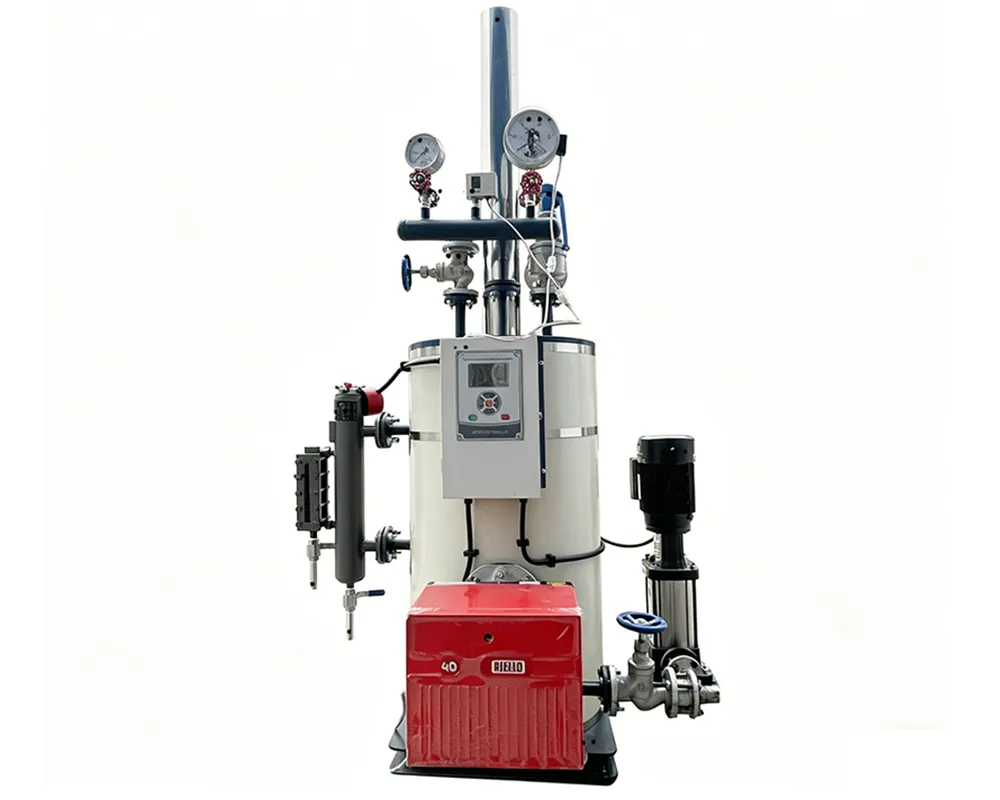

Gas Oil Fired Steam Generator
Product Advantage
LSS oil/gas-fired vertical fast steam generator is a compact, fully automatic heating unit. It generates steam rapidly within 3–5 minutes with high thermal efficiency. Featuring a vertical tubular structure, it has small water capacity, high safety, and is exempt from annual inspection.This device is pre installed at the factory and does not require on-site installation.
Quick steam generation （3-5minutes）
No on-site installation required
Safety production：Low water level protection device to avoid dry burning
Multiple protections including safety valves, pressure gauges, and pressure controllers ensure safe and stable operation

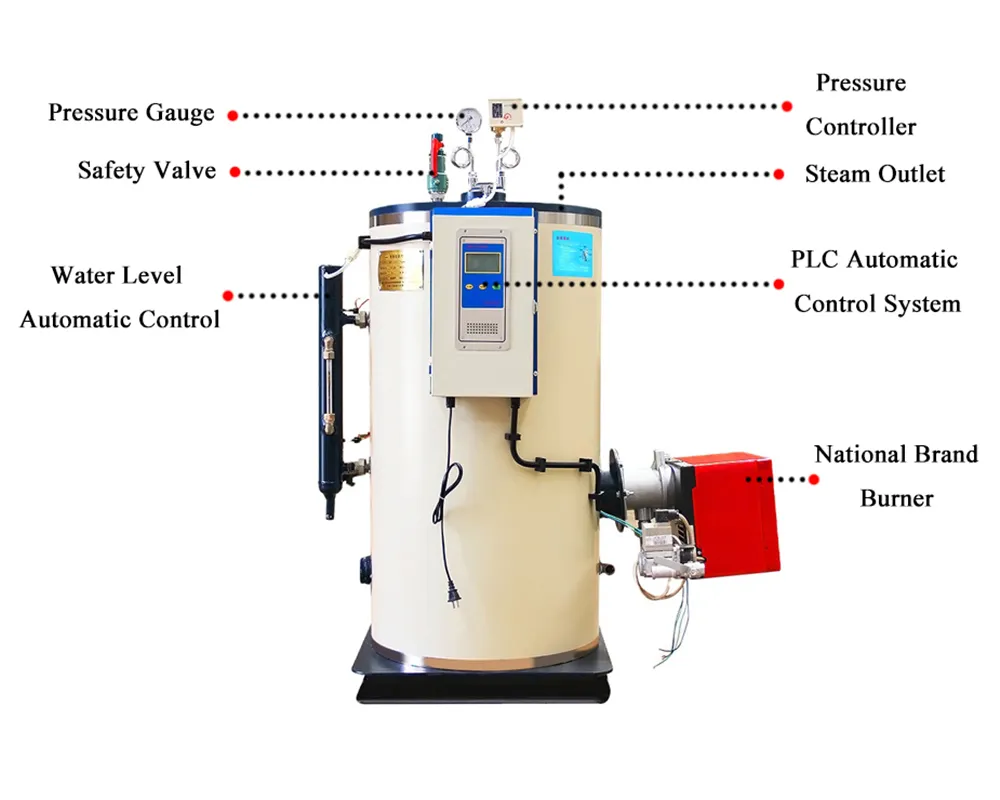

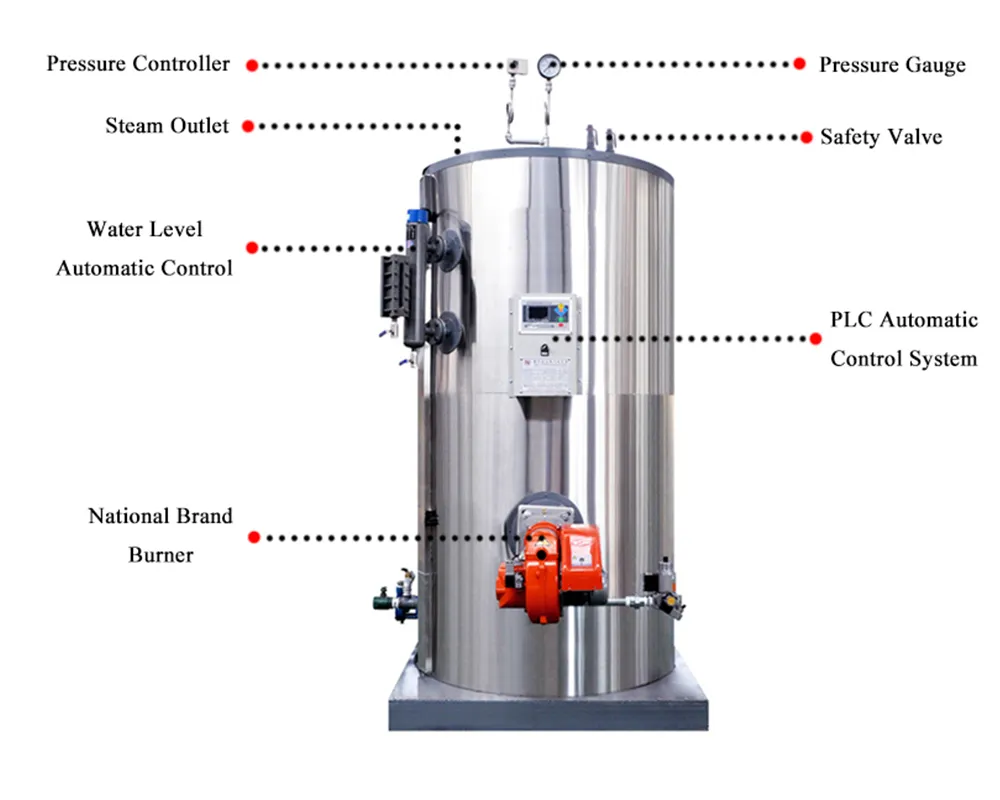

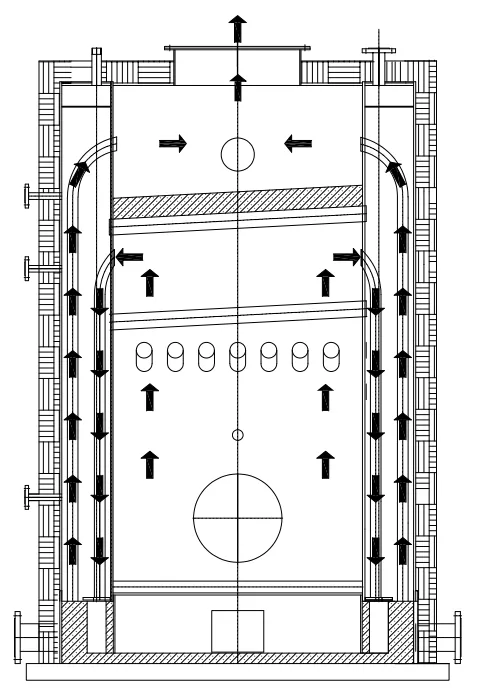

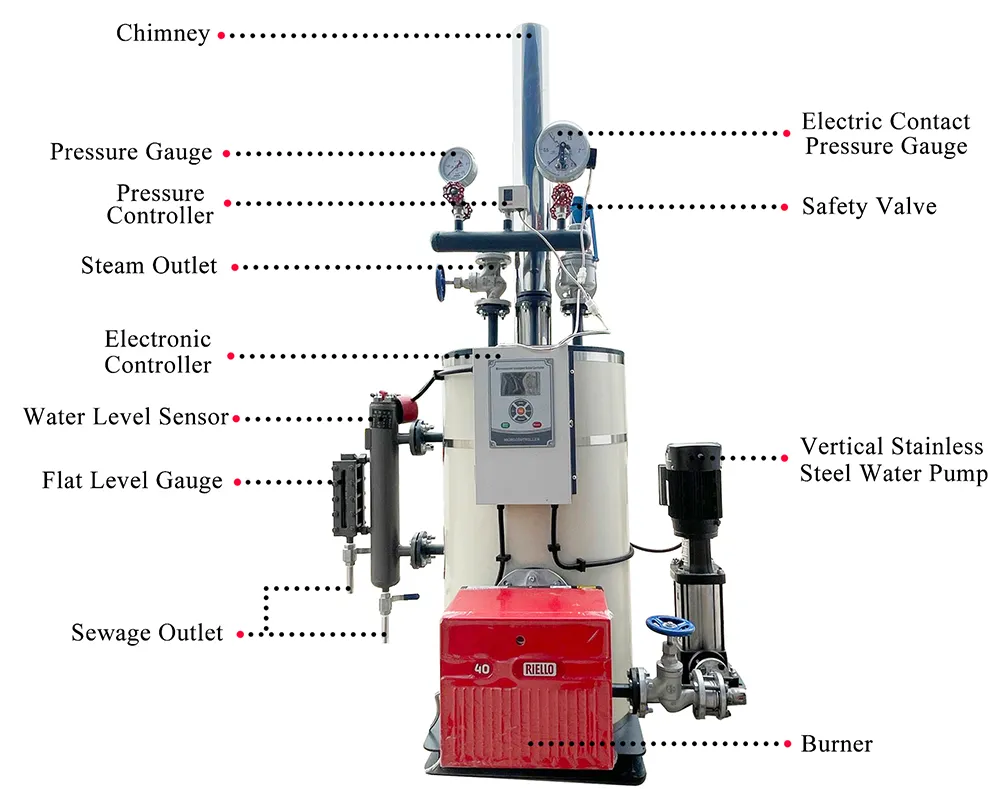

Product Structure
TECHNOLOGY&PROCESS
Laser drilling
Threaded pipe processing
UItra wide universal bending machine
Automatic welding lifting platform
Robot welding
Automatic welding production line
Mechanical experimental apparatus
Non destructive testing workshop
Paint workshop
Product Parameters
Gas Oil Fired Steam Generator Main Technical Parameters
| Model | Rated steam capacity | Rated steam pressure | Thermal efficiency | Steam temperature | Dimension | Weight |
| (kg/h) | (Mpa) | (%) | (℃) | (m) | (t) | |
| LSS0.05-0.4/0.7-Y(Q) | 50 | 0.4/0.7 | ≥93 | 151/171 | 0.62×0.62×0.83 | 0.206 |
| LSS0.1-0.4/0.7-Y(Q) | 100 | 0.4/0.7 | ≥93 | 151/171 | 0.69×0.69×0.968 | 0.252 |
| LSS0.15-0.4/0.7-Y(Q) | 150 | 0.4/0.7 | ≥93 | 151/171 | 0.75×0.75×1.13 | 0.303 |
| LSS0.2-0.4/0.7-Y(Q) | 200 | 0.4/0.7 | ≥93 | 151/171 | 0.8×0.8×1.286 | 0.35 |
| LSS0.3-0.4/0.7-Y(Q) | 300 | 0.4/0.7 | ≥93 | 151/171 | 0.8×0.8×1.525 | 0.55 |
| LSS0.4-0.4/0.7-Y(Q) | 400 | 0.4/0.7 | ≥93 | 151/171 | 0.84×0.84×1.775 | 0.7 |

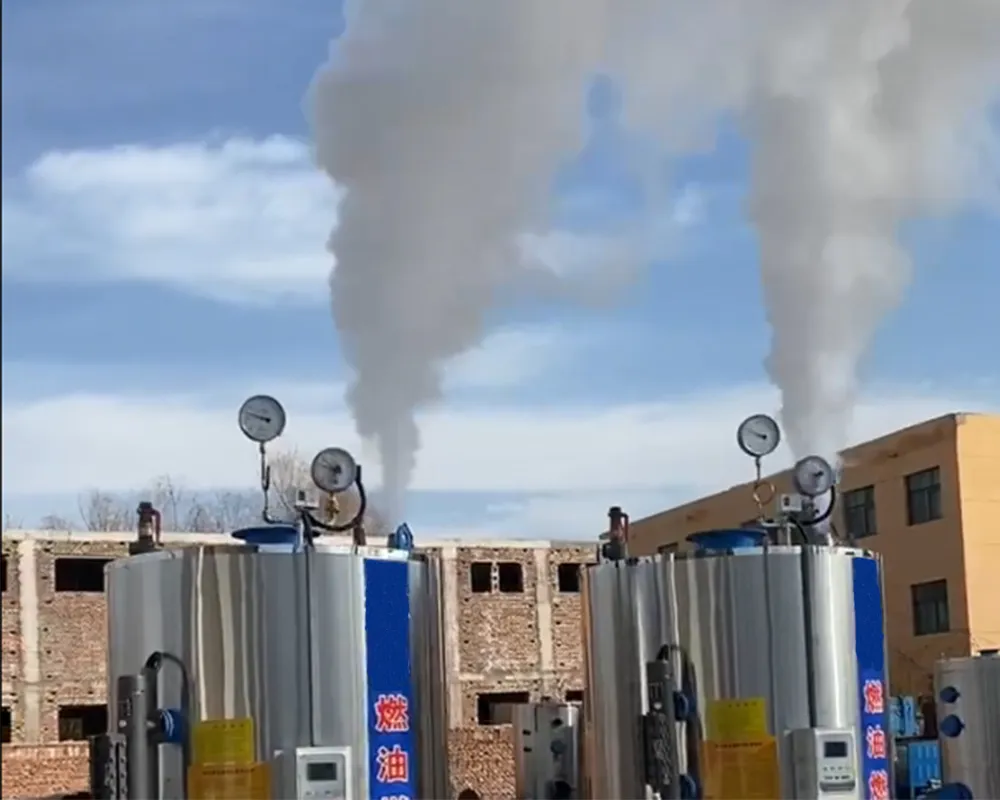

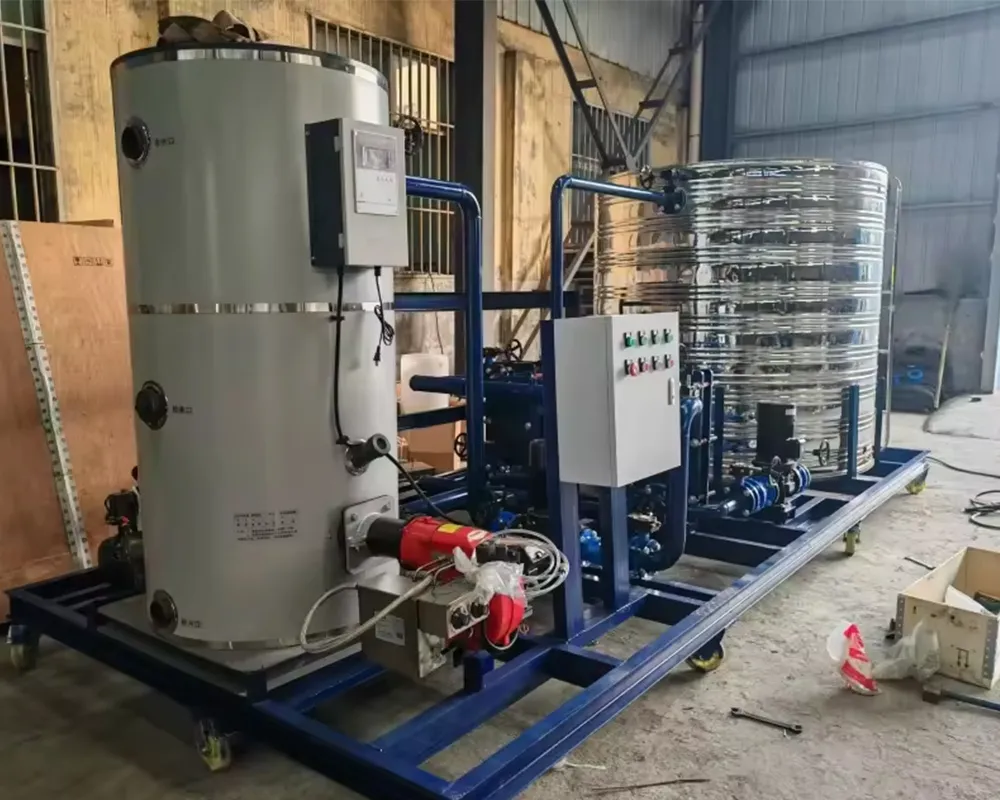

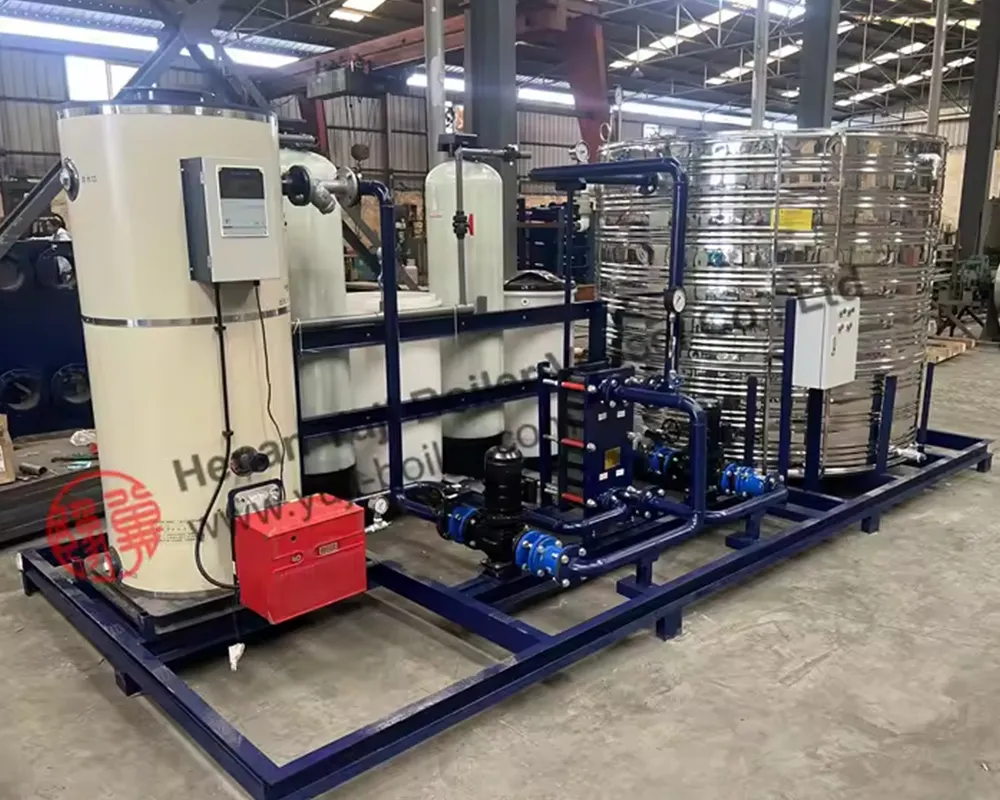

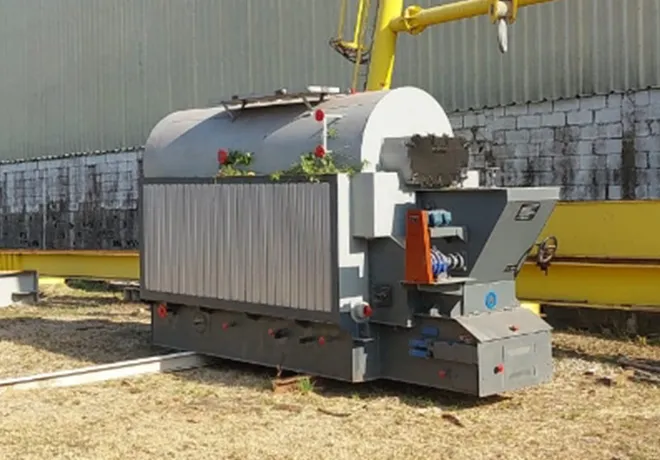

Relevant Cases
Customize Your Boiler Solution
Tell us your need for boiler capacity in your industry, we will recommend the most suitable boiler model for you!
