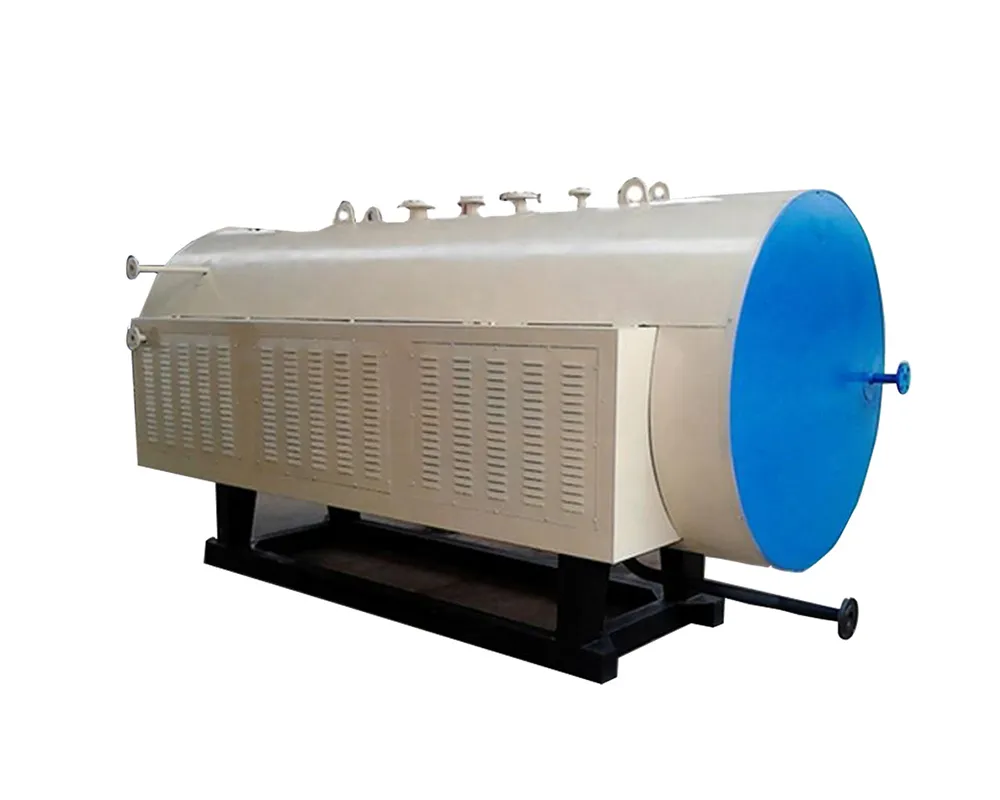

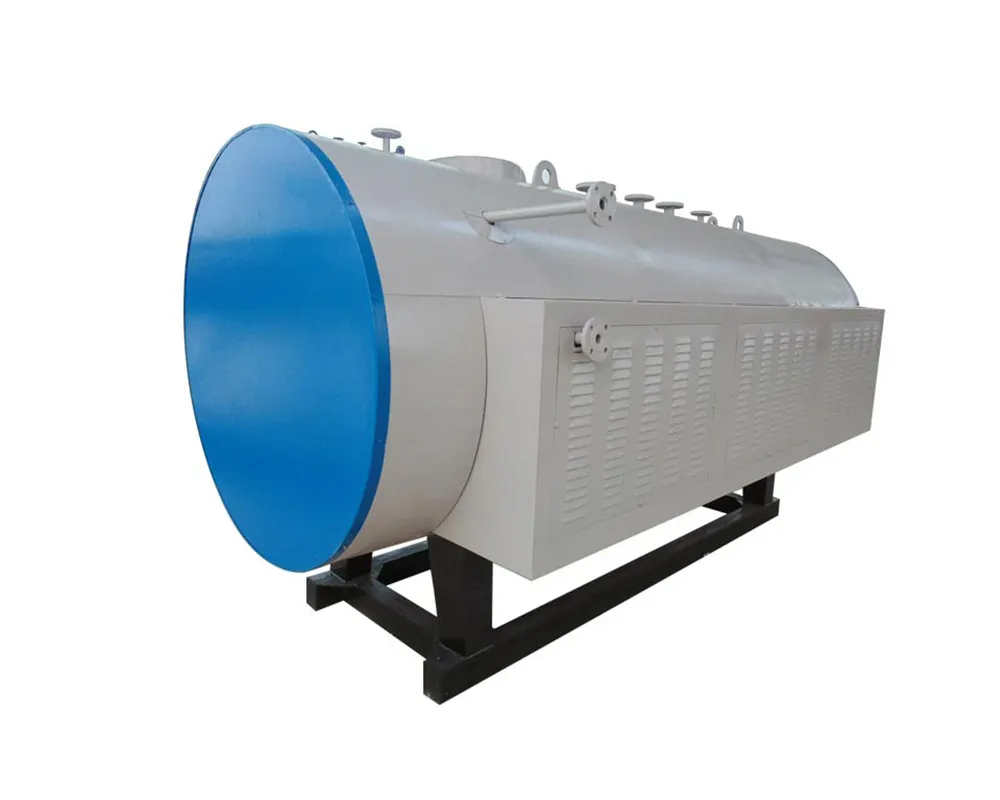

Electric Heating Steam Boiler (WDR)

The WDR electric heating horizontal electric steam boiler consists of a drum, high-quality stainless steel heating elements, world-renowned brand electrical components, and safety accessories. It has the characteristics of high thermal efficiency, long service life, fully automatic operation, safety and reliability.

Steam volume: 500-8000kg/h

Steam pressure: 4-25 bar (0.4-2.5Mpa) optional

Steam temperature: 150 ° C-226 ° C

Applications: Food industry, sugar processing, coffee processing, textile, printing and dyeing, pharmaceuticals, building materials, breweries, rubber, chemical and other industries

Product Advantage

TECHNOLOGY&PROCESS

Laser drilling

Threaded pipe processing

UItra wide universal bending machine

Automatic welding lifting platform

Robot welding

Automatic welding production line

Mechanical experimental apparatus

Non destructive testing workshop

Paint workshop

Product Parameters

WDR Series Steam Boiler Main Technical Parameters

Model	Unit	WDR1	WDR2	WDR3	WDR4
Steam Capacity	t/h	1	2	3	4
Working Pressure	MPa	0.4/0.7/1.0/1.25
Steam Temperature	℃	151/170/184/193
Feed Water Temperature	℃	20
Thermal Efficiency	/	≈99%
Input Power	KW	720	1 440	2160	2880
Input Current	A	1080	2160	3240	4320
Electric Heating Tube Power	KW	36	36	36	36
Eletric Heating Tube Quantity	P	20	40	60	80
Steam Outlet Valve Pipe	DN(mm)	65	80	80	100
Feed Water Valve Pipe	DN(mm)	40	40	40	40
Safety Valve Pipe	DN(mm)	2x40	2x50	2x50	2x50
Drain Valve Pipe	DN(mm)	40	40	40	40
Transport Dimension of Boiler Host	L(mm)	3340	4300	4750	5180
	W(mm)	2180	2180	2180	2180
	H(mm)	2015	2015	2015	2015
Transport Weight	T	2.6	4.1	5.3	6.6
