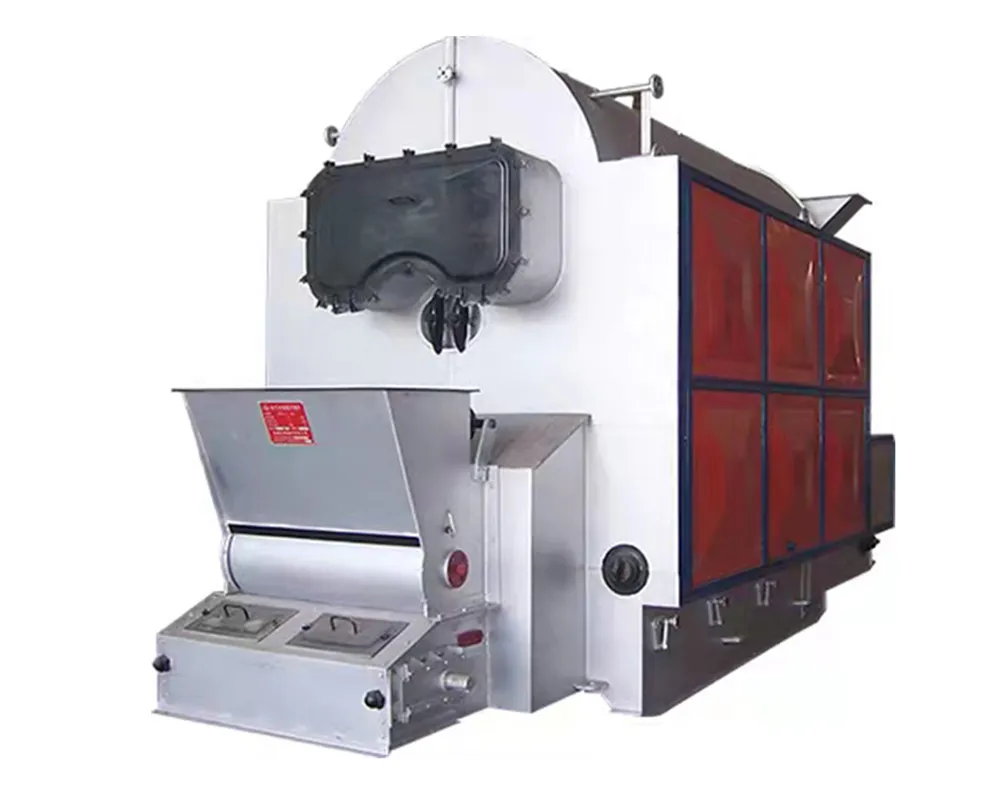

DZL Biomass Fired Chain Grate Boiler Main Diagram 4

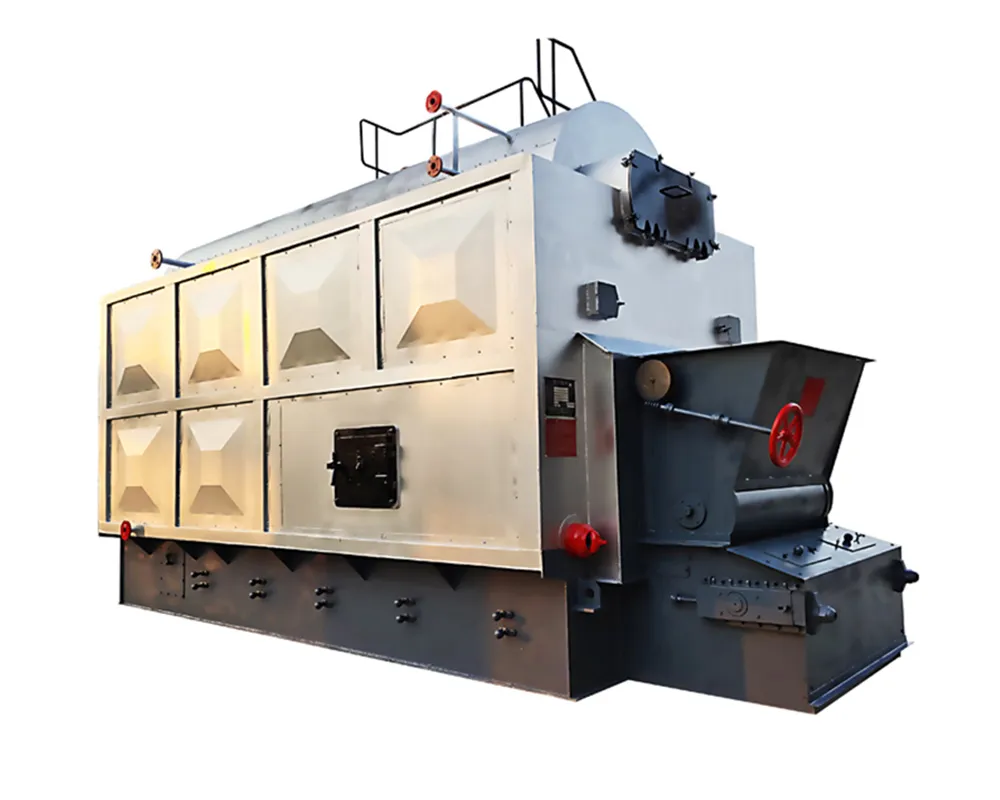

DZL Biomass Fired Chain Grate Boiler Main Diagram 3

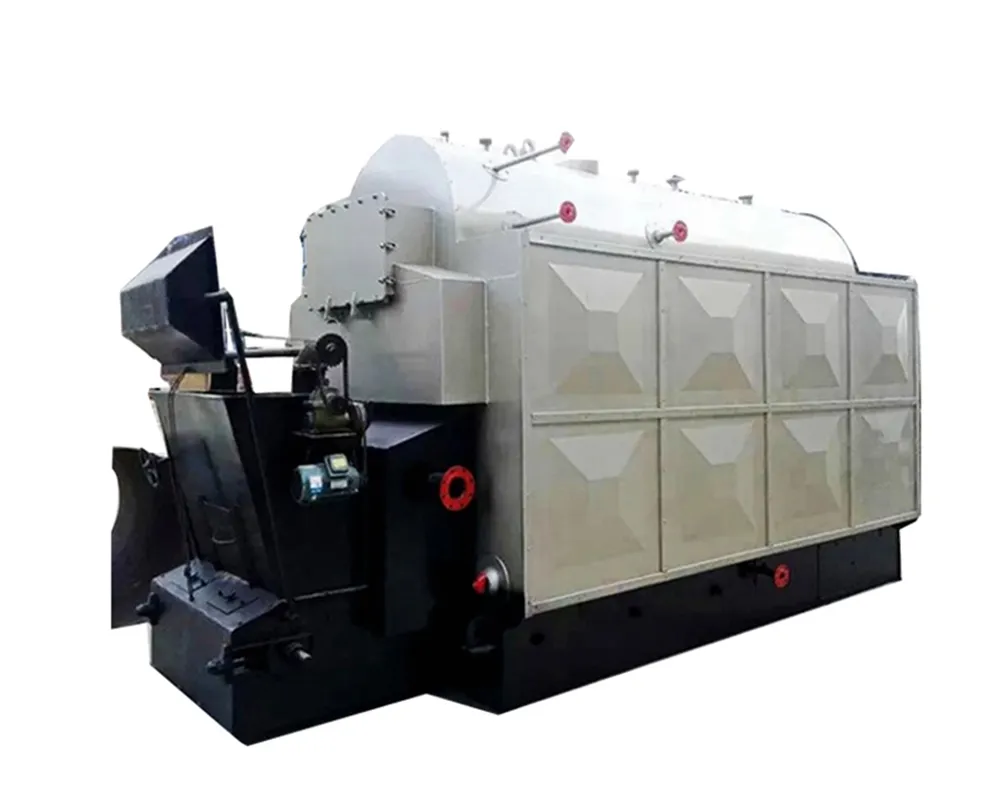

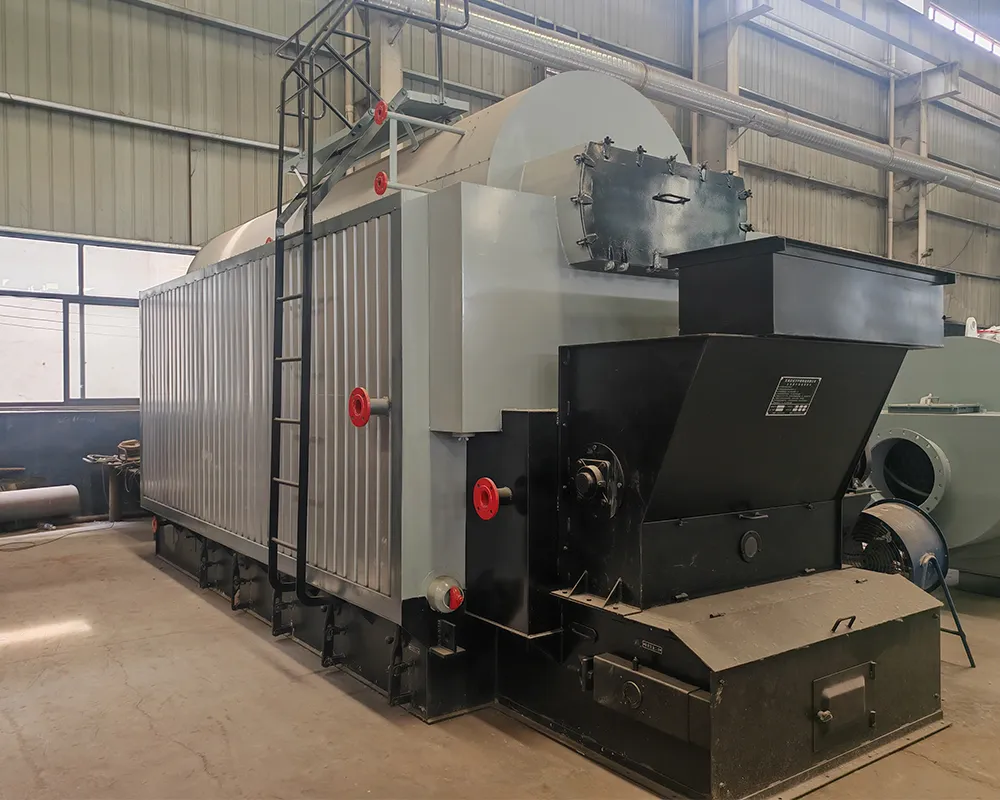

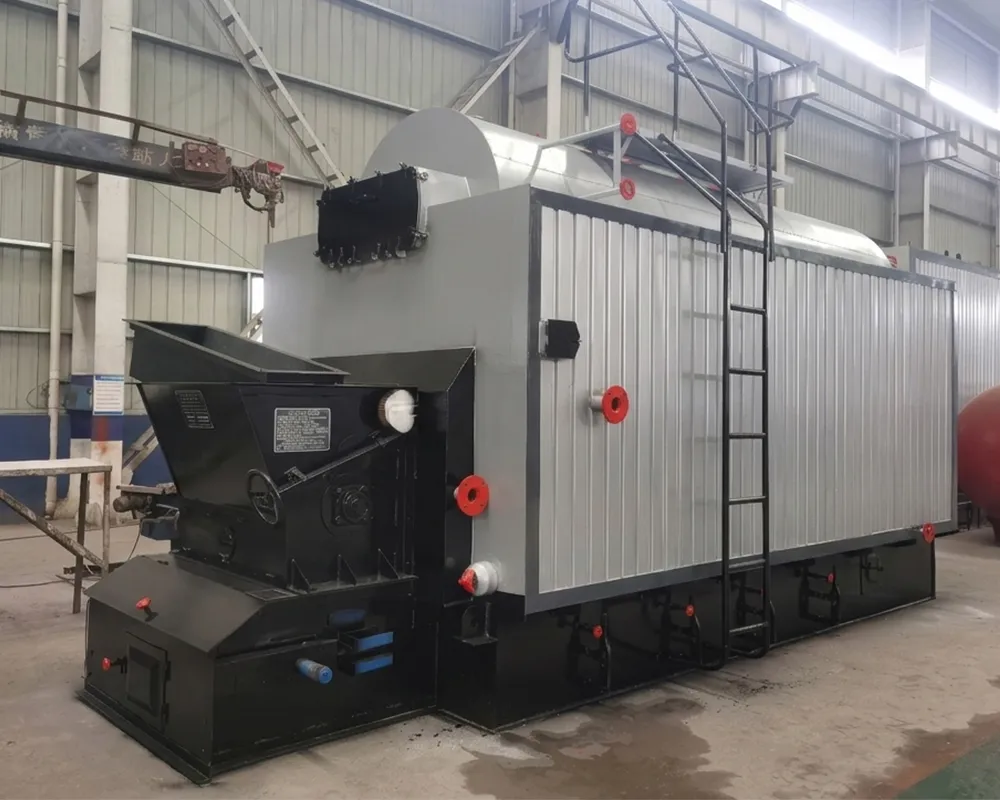

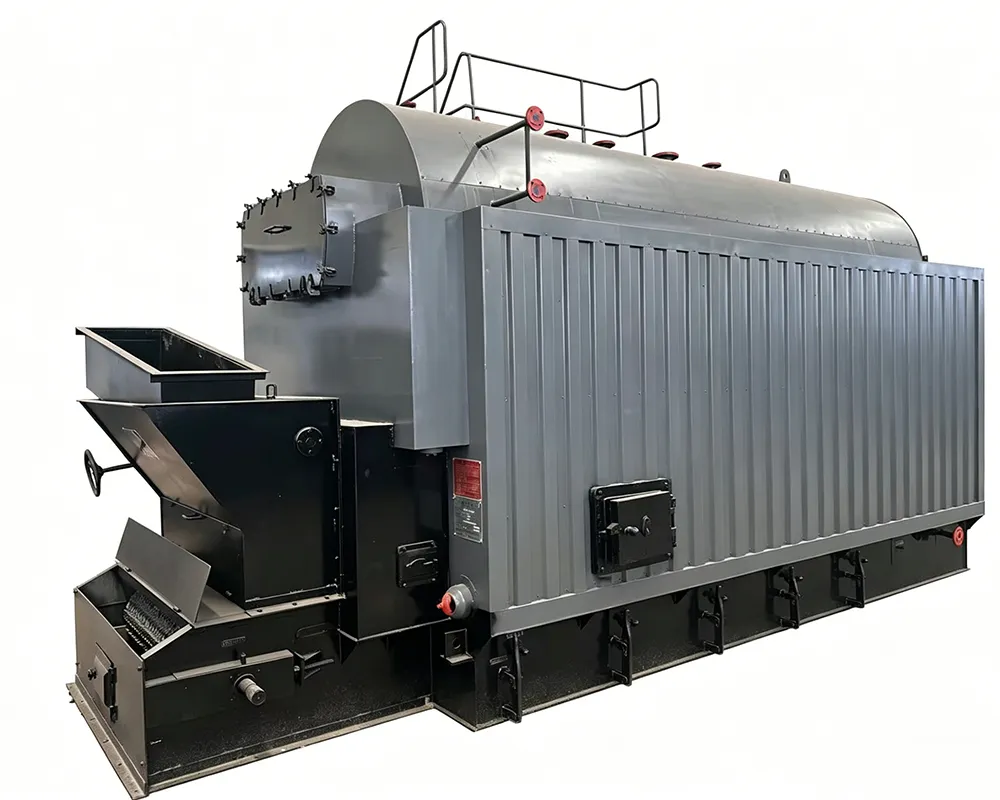

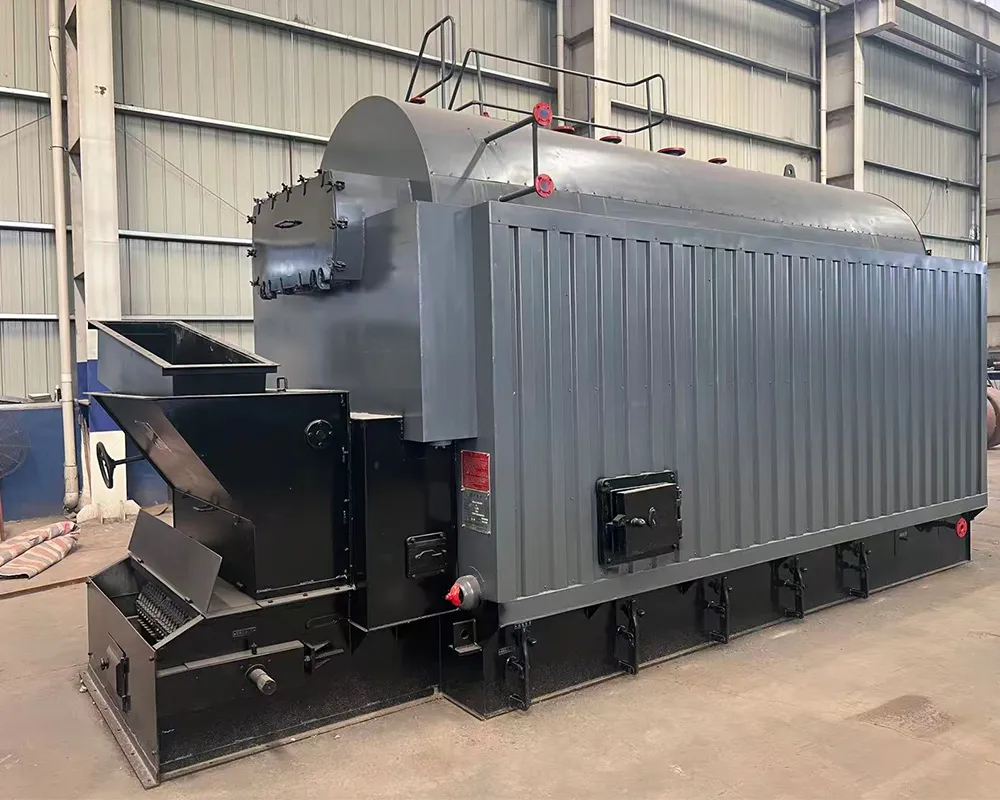

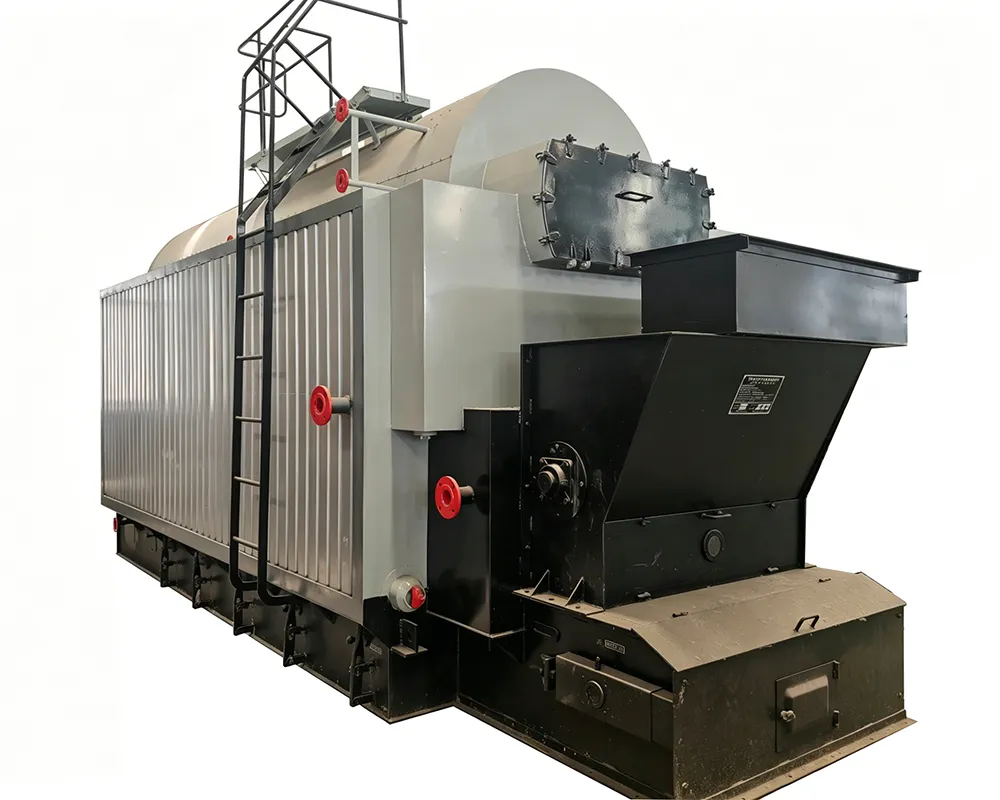

DZL Biomass Fired Chain Grate Boiler

The DZL series chain grate coal-fired steam boiler is designed with a three pass flue gas structure and uses high-efficiency heat transfer threaded flue pipes to improve heat transfer efficiency. Configuring an automatic chain grate, feeding, and slag discharge device can achieve the automatic operation of the entire boiler system, saving labor costs.

Steam volume: 1t/h～10t/h

Steam pressure: 4-25 bar (0.4-2.5Mpa) optional

Steam temperature: 150 ℃ - 226 ℃

Fuel: Coal, Biomass pellets, Sawdust, Rice husks, Palm shells, etc.

Application: Steam and heating are widely used in food, sugar, coffee, textiles, printing and dyeing, pharmaceuticals, building materials, brewery, rubber, chemicals, as well as central heating and daily operation in hospitals, hotels and schools.

Product Advantage

Product Parameters

DZL Biomass Fired Chain Grate Boiler Main Technical Parameters

DZL Steam Boiler
Model	Rated evaporation	Rated pressure	Steam temperature	thermal efficiency	Fuel consumption	Size L×W×H	Weight
Model	(t/h)	(MPa)	(℃)	(%)	(kg/h)	(m)	(t)
DZL1-1.0/1.25-AII	1	1.0/1.25	193/204	≥83	176.6	5.1×2.2×2.9	15
DZL2-1.0/1.25-AII	2	1.0/1.25	193/204	≥83	352.3	6.14×2.6×3.3	18
DZL3-1.25/1.6-AII	3	1.25/1.6	193/204	≥83	522	6.33×2.7×3.3	24
DZL4-1.25/1.6-AII	4	1.25/1.6	193/204	≥83	571	6.88×2.7×3.3	27
DZL6-1.25/1.6-AII	6	1.25/1.6	193/204	≥83	1044	7.29×3.2×3.7	31
DZL8-1.25/1.6-AII	8	1.25/1.6	193/204	≥83	1396.5	7.8×3.4×3.7	33
DZL10-1.25/1.6-AII	10	1.25/1.6	193/204	≥83	1743.3	8.5×3.4×3.7	41
