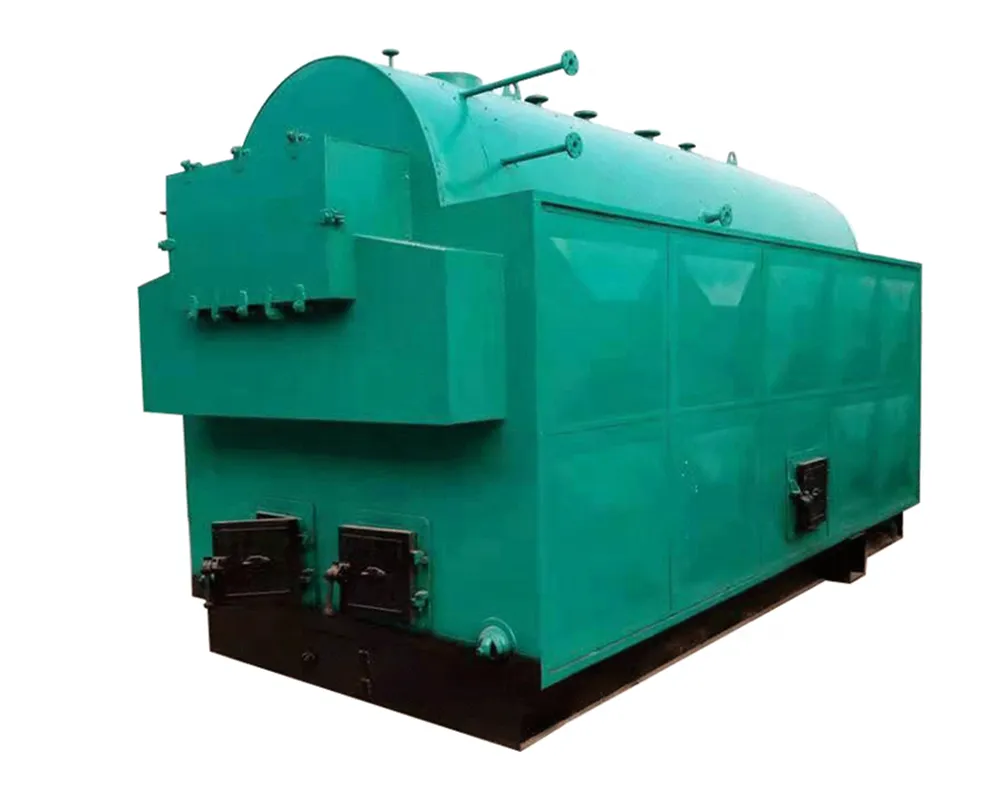

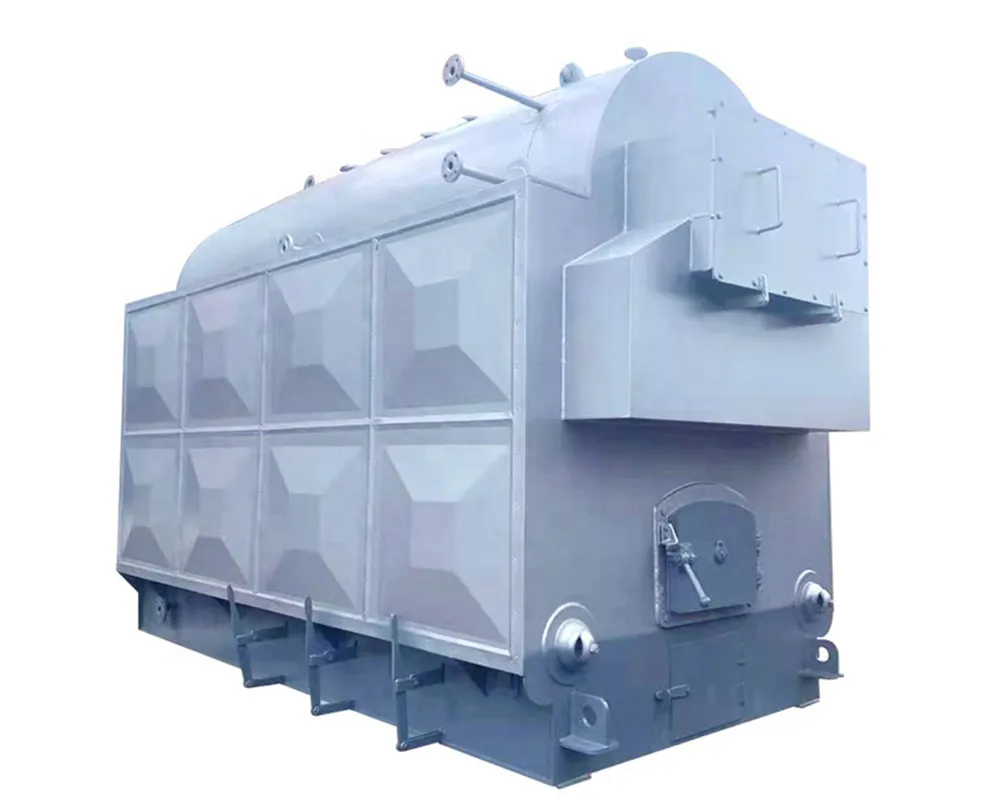

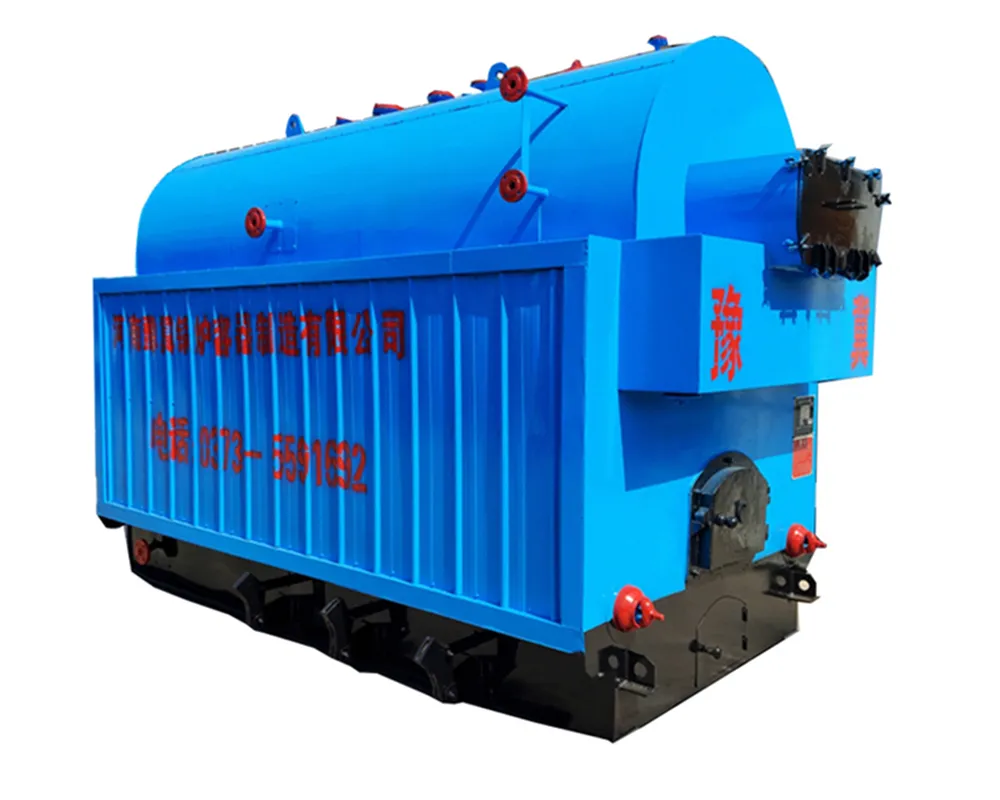

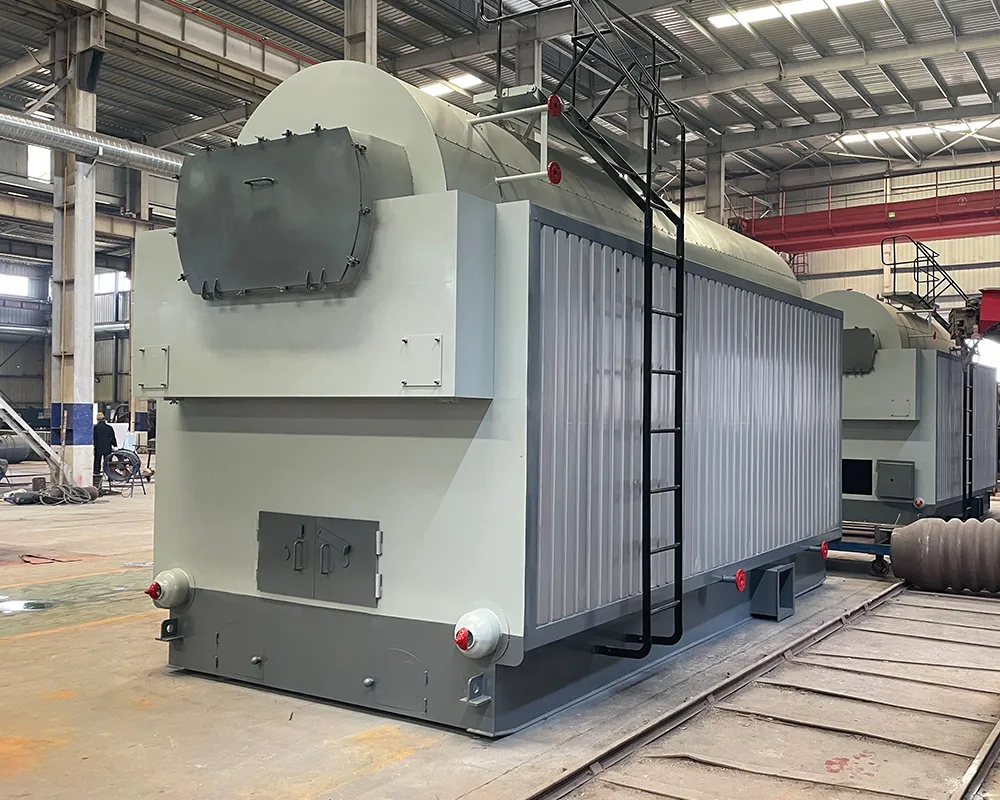

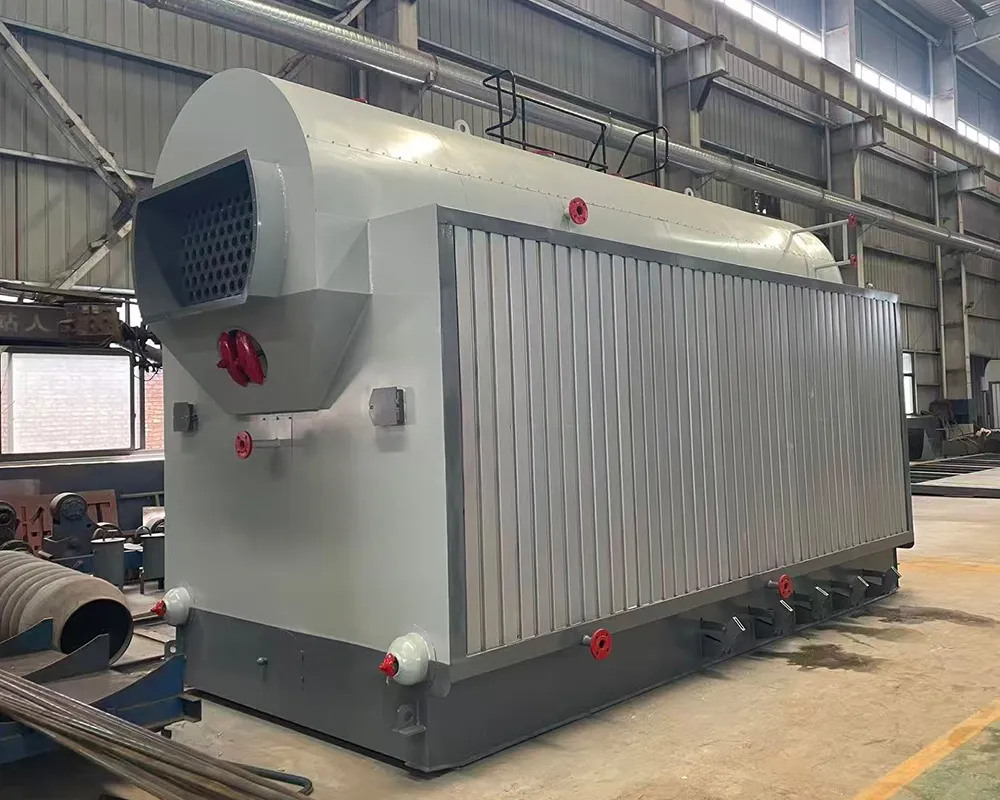

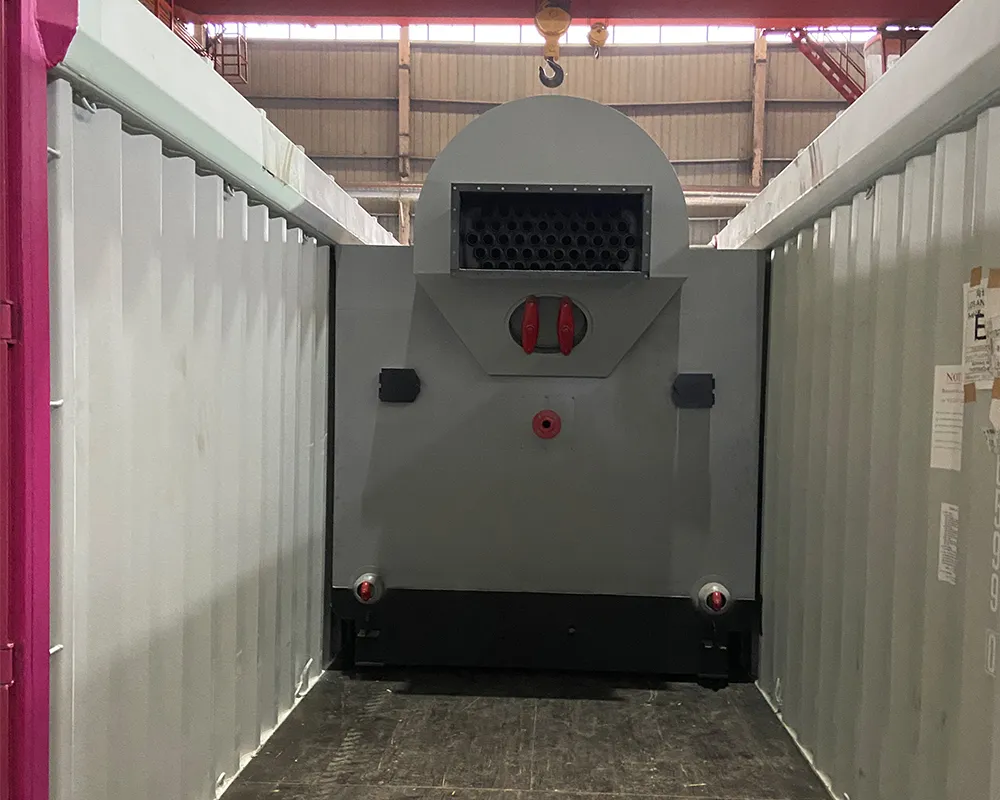

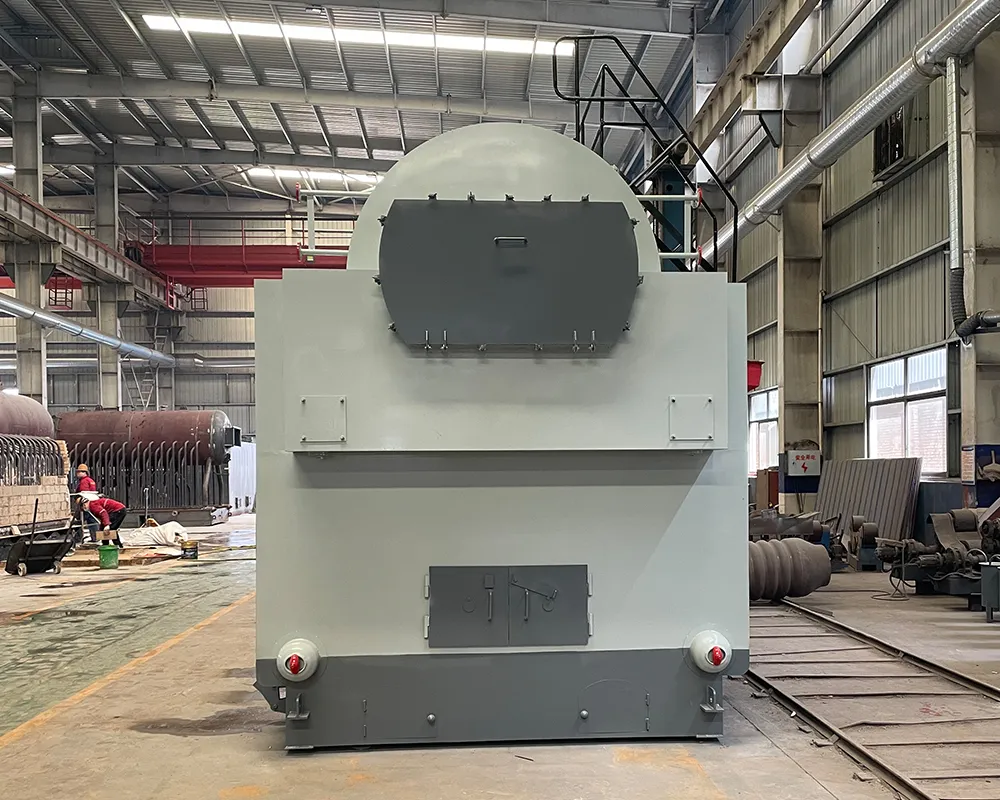

DZH Manual Coal/Wood Boiler
Product Advantage

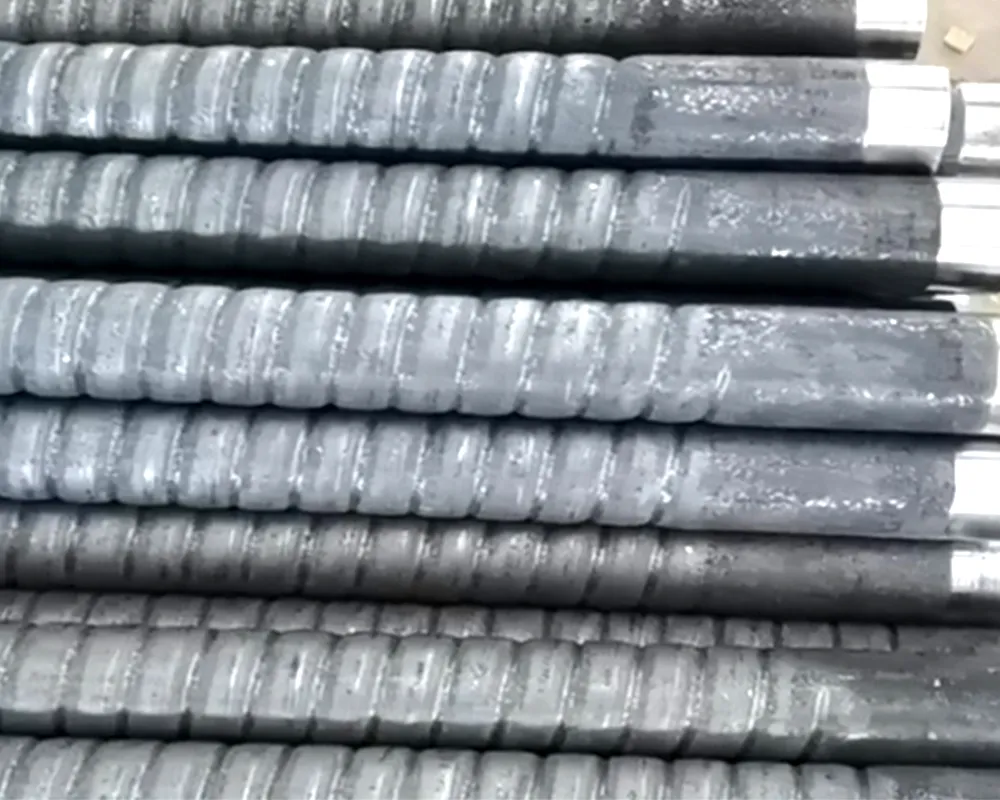

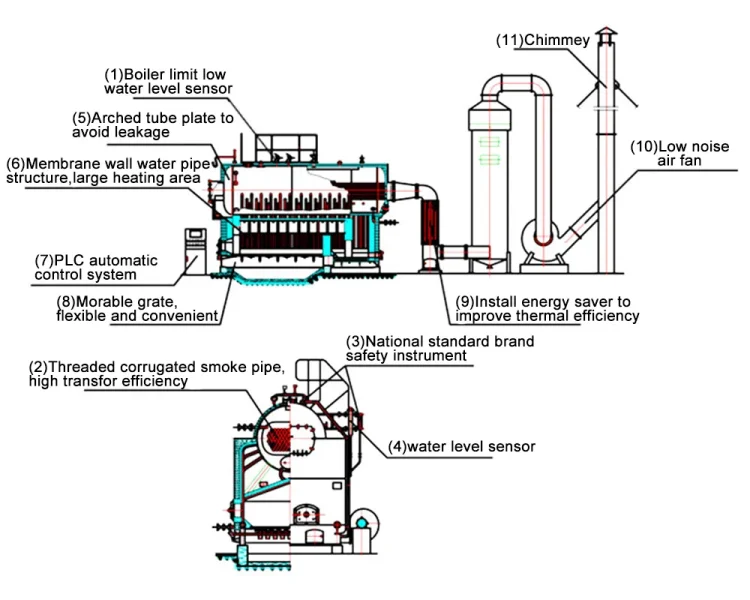

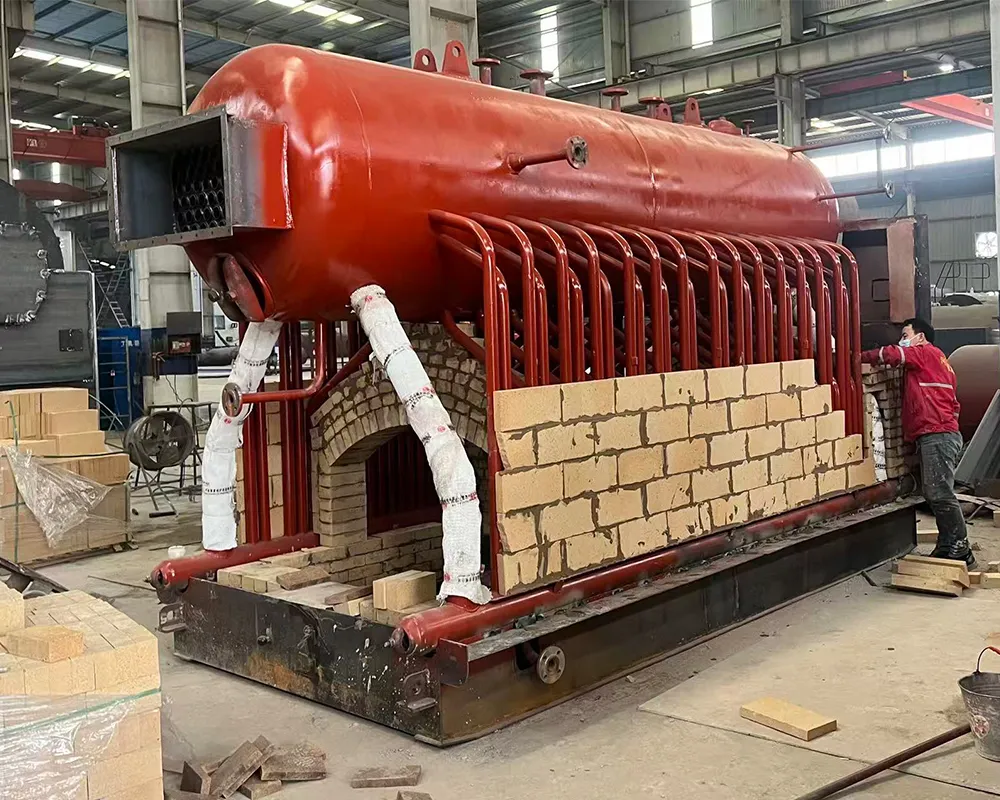

The DZH series boiler is designed with a three pass flue gas structure and uses high-efficiency heat transfer threaded flue pipes to improve heat transfer efficiency. It has fast heat conduction, rapid steam pressure rise, movable grate as combustion equipment, and manual or mechanical fuel delivery mode. It is flexible and can be manually controlled. Suitable for direct combustion of biomass of various shapes, with strong adaptability to fuel.
Large furnace door design, suitable for various biomass combustibles
Advanced design, high thermal efficiency
Core components: Chinese national patented technology
Easy to install and use
TECHNOLOGY&PROCESS
Laser drilling
Threaded pipe processing
UItra wide universal bending machine
Automatic welding lifting platform
Robot welding
Automatic welding production line
Mechanical experimental apparatus
Non destructive testing workshop
Paint workshop
Product Parameters
DZH Manual Coal/Wood Steam Boiler Main Technical Parameters
| Model | Rated evaporation | Rated pressure | Steam temperature | thermal efficiency | Fuel consumption | Size L×W×H | Weight(t) |
| (t/h) | (MPa) | (℃) | (%) | (kg/h) | (m) | (m) | |
| DZH 1-0.7/1.0-AII | 1 | 0.7/1.0 | 193/204 | ≥83 | 176.6 | 4.3×1.9×2.9 | 13.6 |
| DZH 2-1.0/1.25-AII | 2 | 1.0/1.25 | 193/204 | ≥83 | 352.3 | 5.14×2.5×3.1 | 18 |
| DZH 3-1.25/1.6-AII | 3 | 1.25/1.6 | 193/204 | ≥83 | 522.5 | 5.63×2.7×3.3 | 23 |
| DZH 4-1.25/1.6-AII | 4 | 1.25/1.6 | 193/204 | ≥83 | 697 | 5.92×2.7×3.5 | 25.3 |
| DZH 6-1.25/1.6-AII | 6 | 1.25/1.6 | 193/204 | ≥83 | 1044 | 6.2×3.0×3.58 | 31 |
| DZH 8-1.25/1.6-AII | 8 | 1.25/1.6 | 193/204 | ≥83 | 1396 | 6.8×3.4×3.6 | 34 |
| DZH 10-1.25/1.6-AII | 10 | 1.25/1.6 | 193/204 | ≥83 | 1744 | 7.5×3.4×3.7 | 39 |
Relevant Cases
Customize Your Boiler Solution
Tell us your need for boiler capacity in your industry, we will recommend the most suitable boiler model for you!
