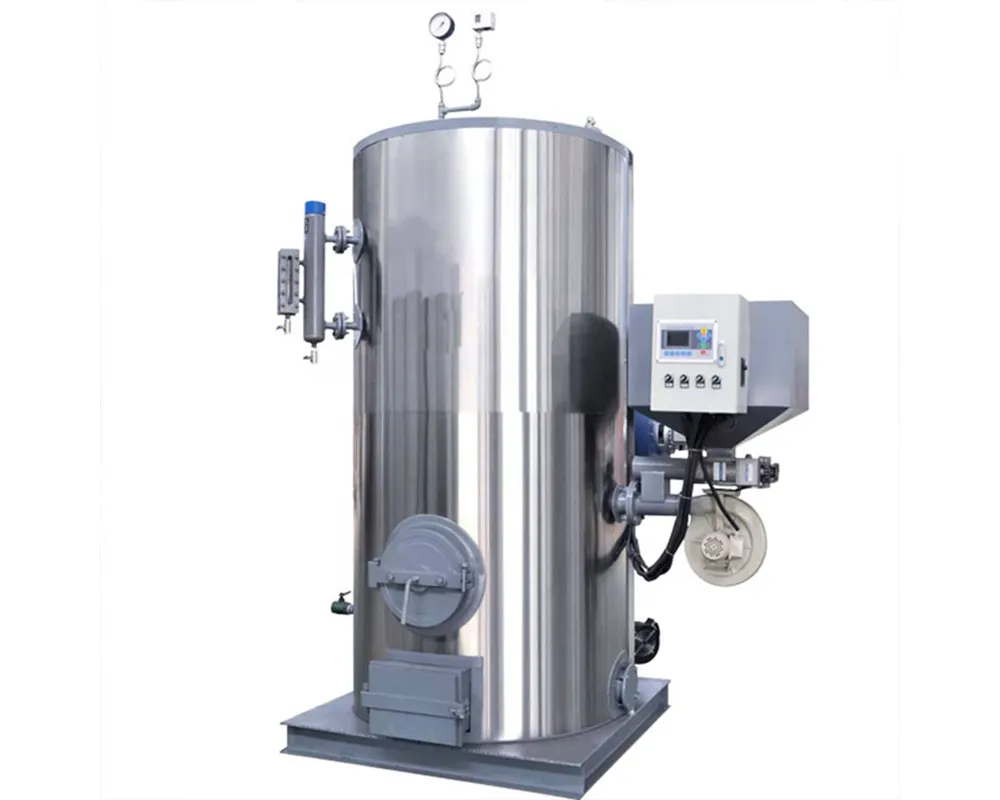

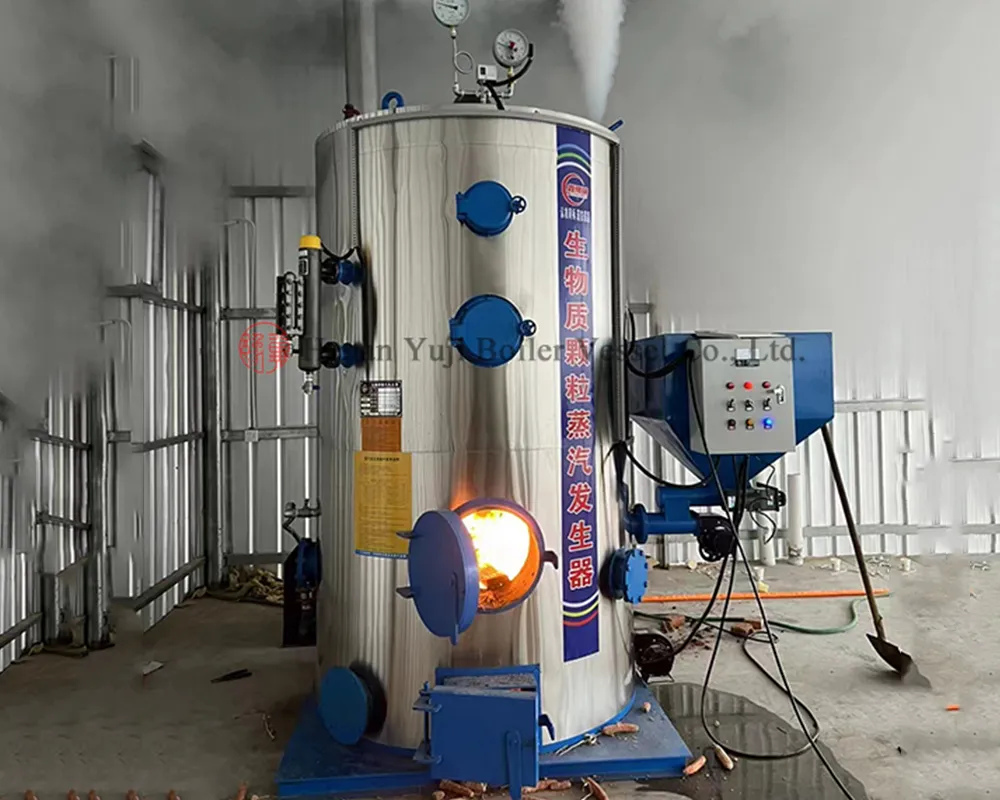

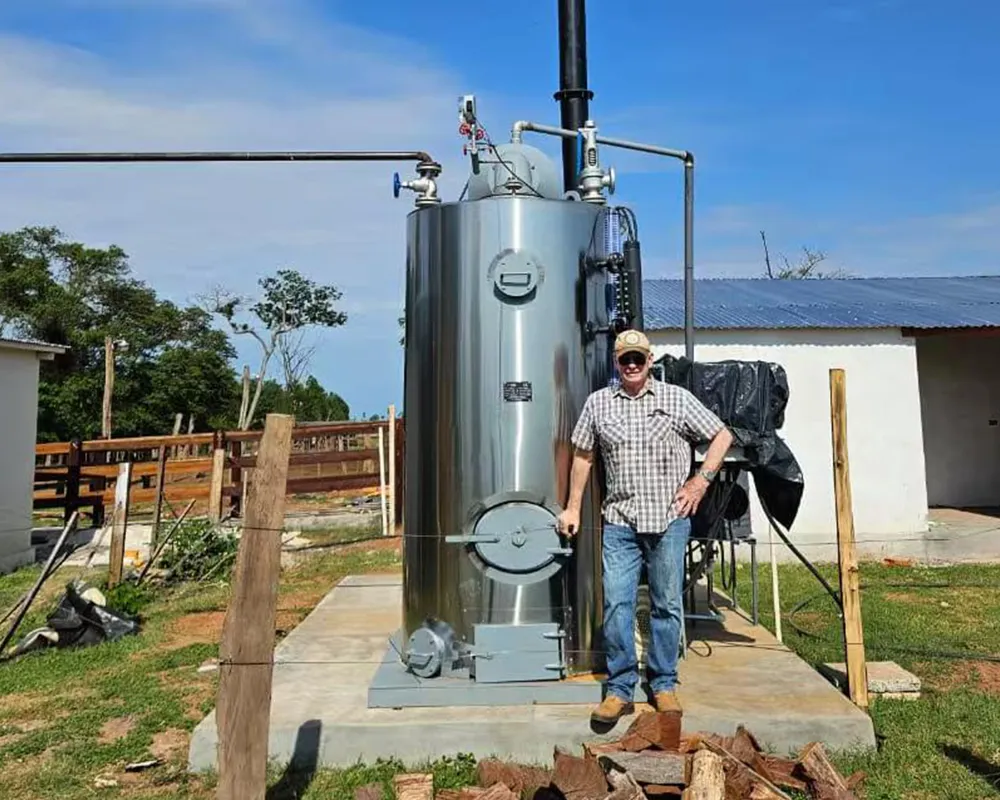

Biomass Steam Generator

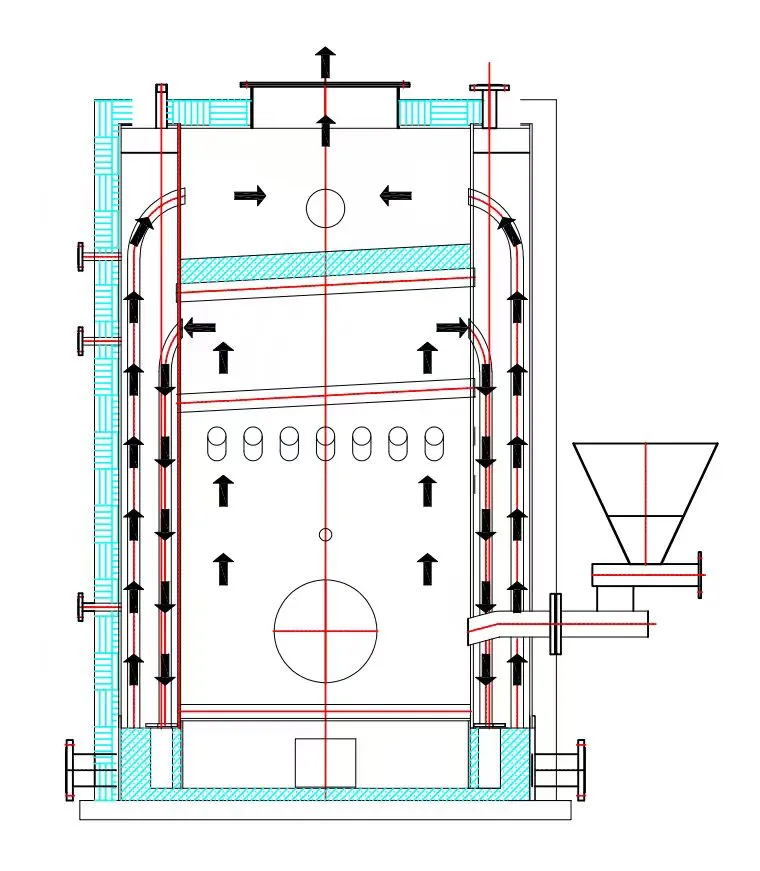

The internal structure of the biomass/coal vertical steam generator is designed as a three pass flue gas structure, which is characterized by small water volume, large heating area, rapid steam output, high thermal efficiency, and an independent energy-saving device at the tail to fully utilize the residual temperature of the flue gas and save fuel at maximum efficiency. It has automatic feeding, blower and induced draft fan frequency conversion control functions, operates automatically, adjusts fuel input according to load changes to achieve stable steam output. It is equipped with pressure, water level, and exhaust gas temperature protection and alarm systems to ensure safe operation.

Steam Capacity: 100-2000kg/h

Steam Pressure: 1-10 bar (0.1-1.0 Mpa) optional

Steam temperature: 100-184 ℃

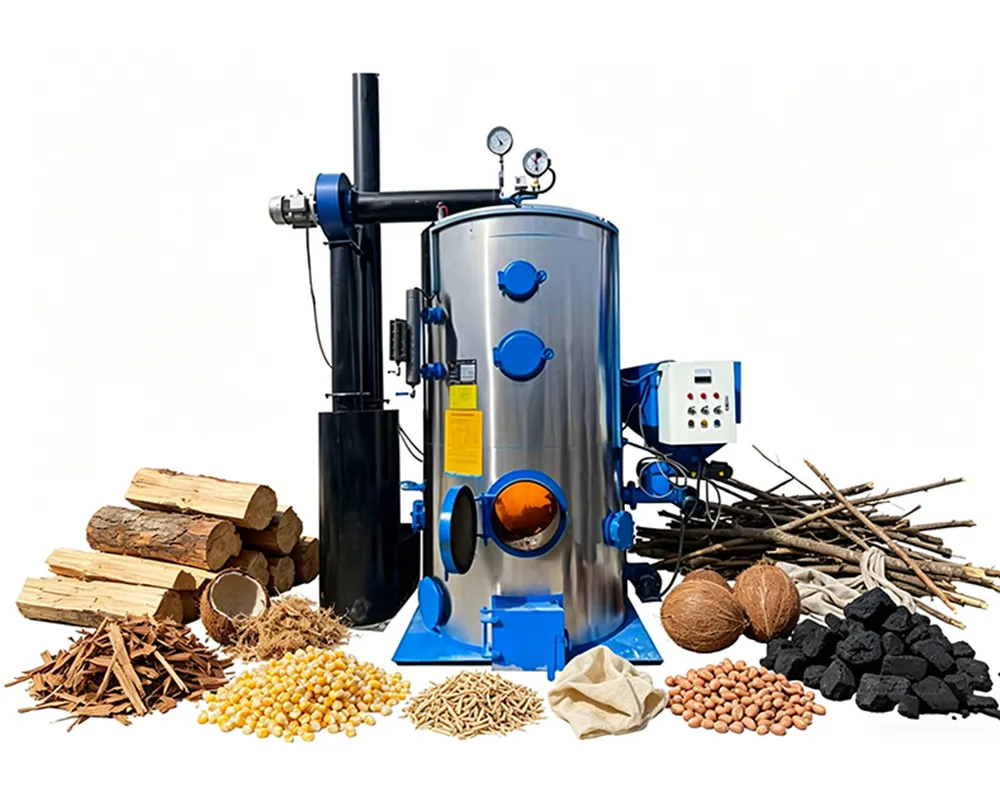

Fuel: Wood, palm shells, sugarcane bagasse, corn cobs, coconut shells, rice husks, peanut shells, tree branches, coal, cloth strips, and all other combustible materials.

Applications: Food industry, sugar and coffee processing, textiles, printing and dyeing, pharmaceuticals, chemicals, rubber and all other industrial projects that require steam.

Product Advantage

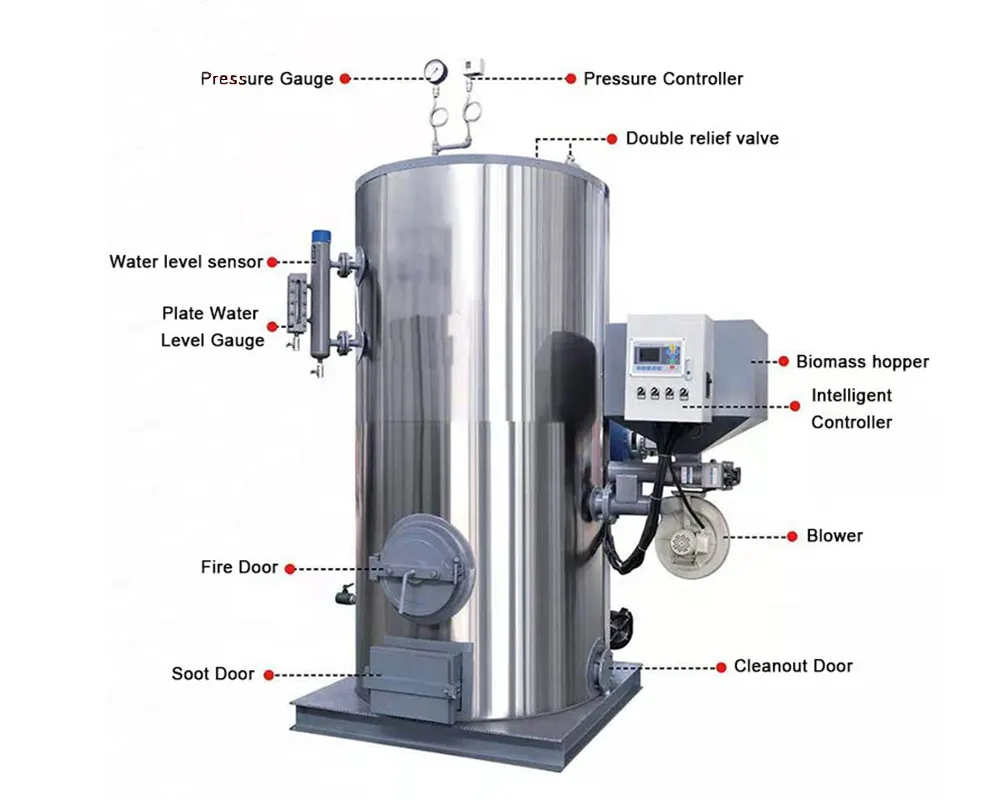

Biomass steam generator is a small boiler with circulating water pipes. It boasts smooth water circulation, scientifically arranged heating area, fast heat conduction and rapid steam pressure rise. Featuring automatic feeding, frequency conversion control for blowers and induced draft fans, it runs automatically, adjusting fuel input according to load changes for stable steam output. It is equipped with pressure, water level and exhaust gas temperature protection and alarm systems to guarantee safe operation.

TECHNOLOGY&PROCESS

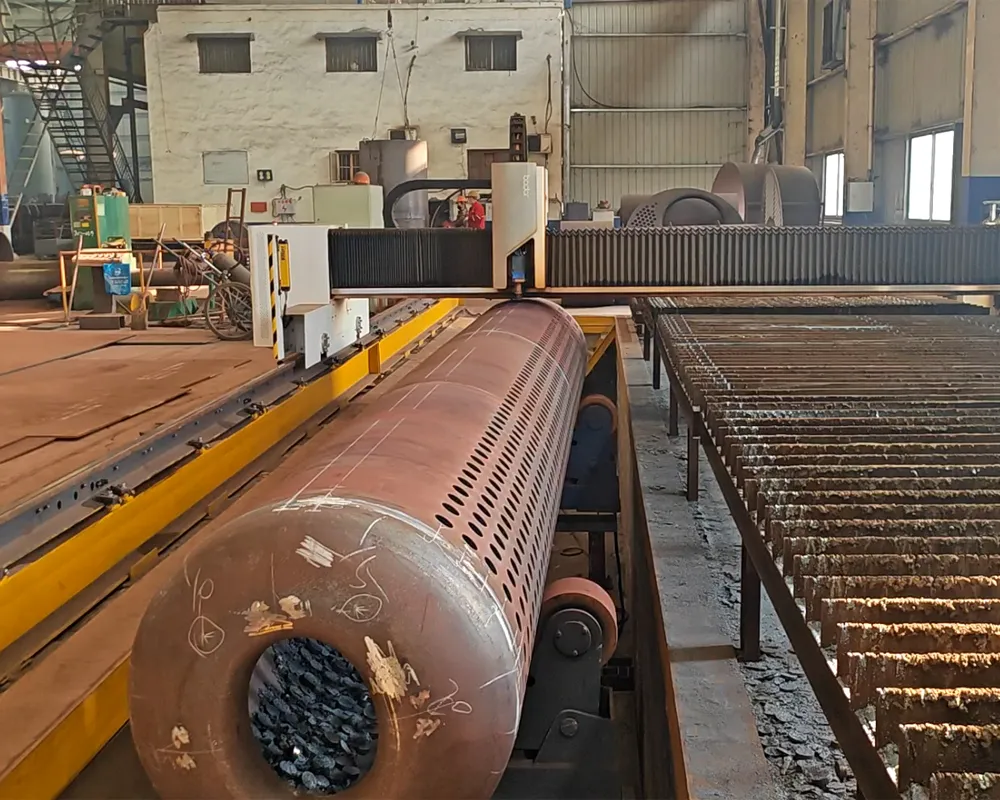

Laser drilling

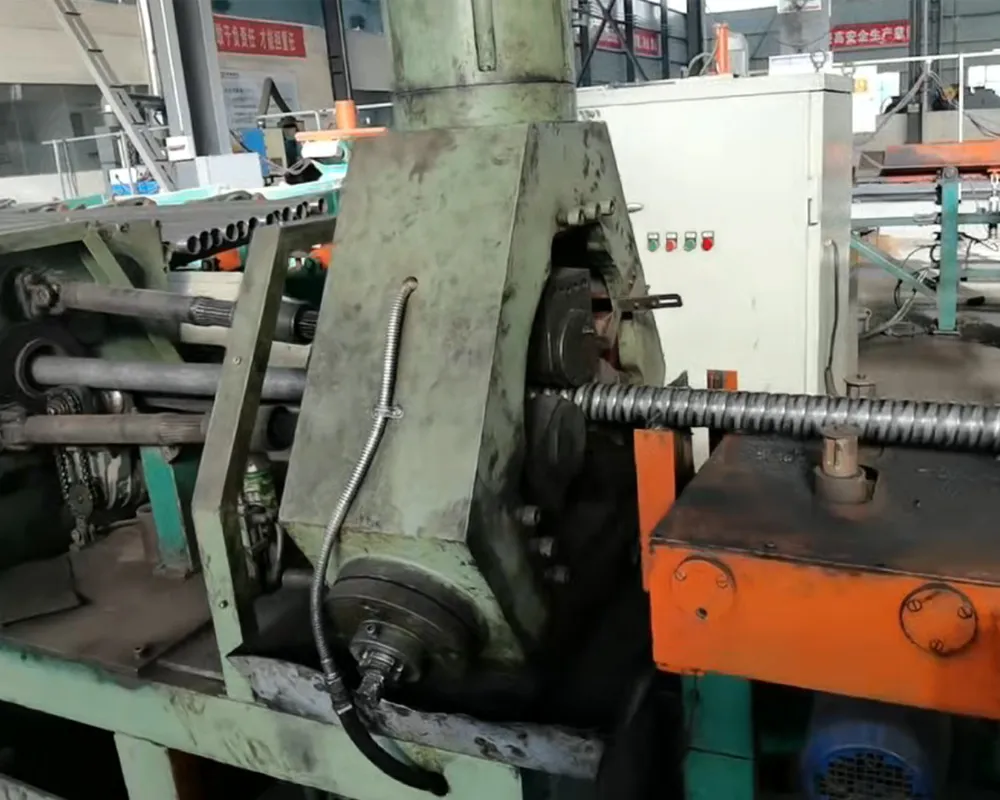

Threaded pipe processing

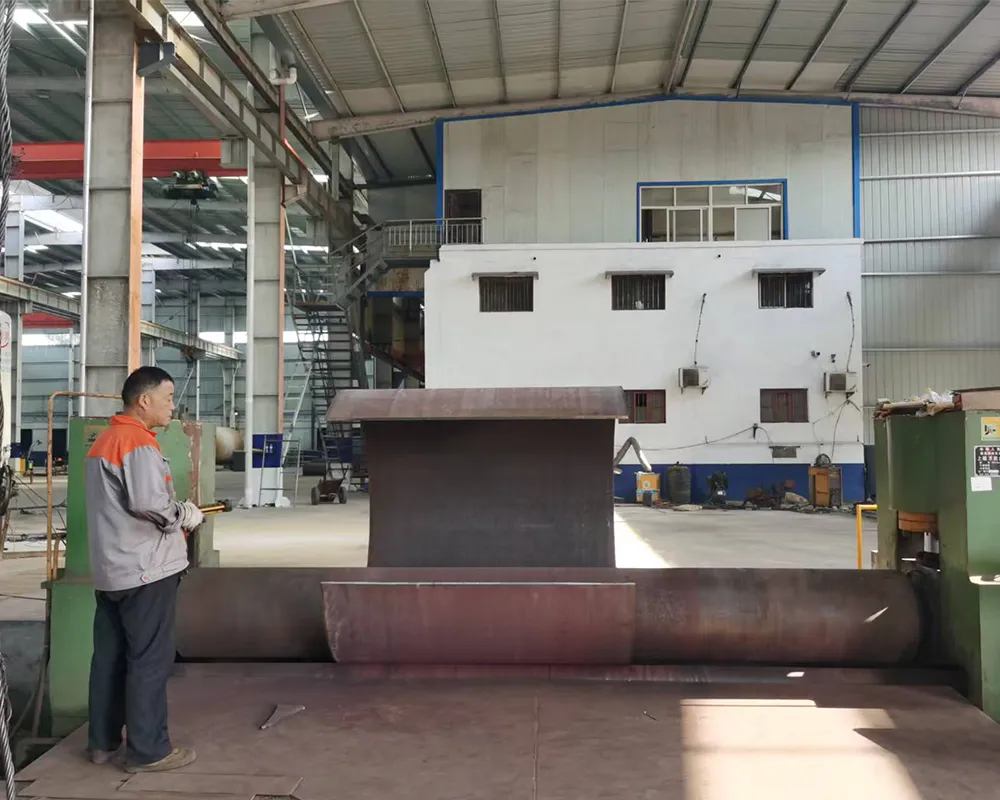

UItra wide universal bending machine

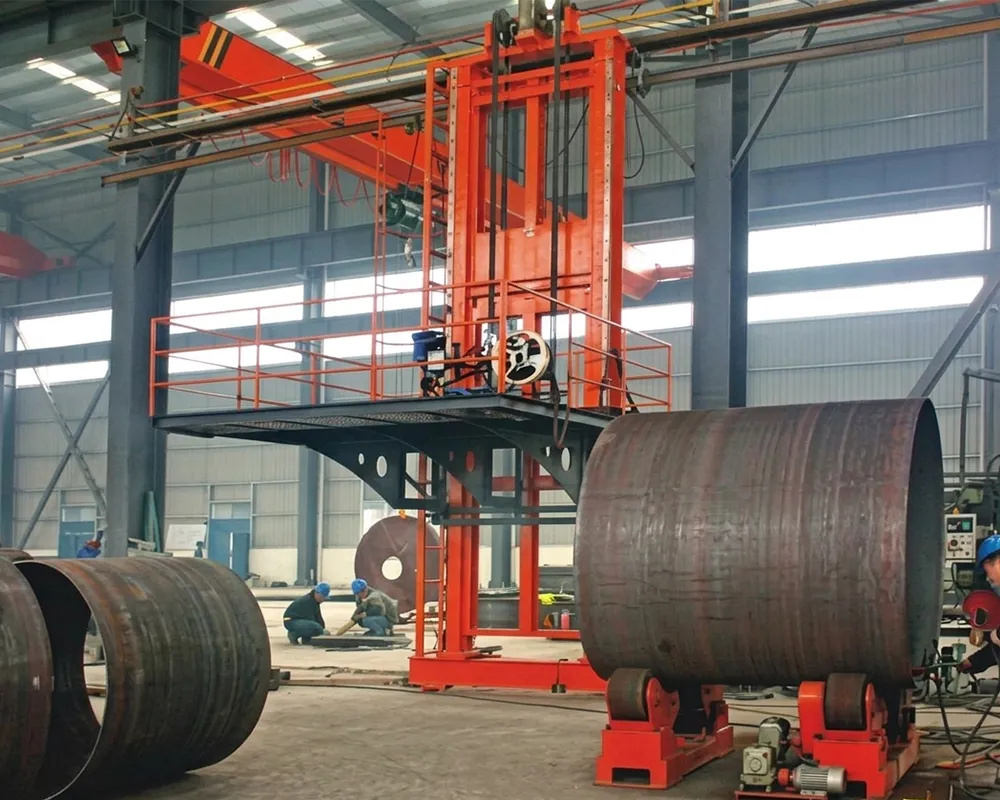

Automatic welding lifting platform

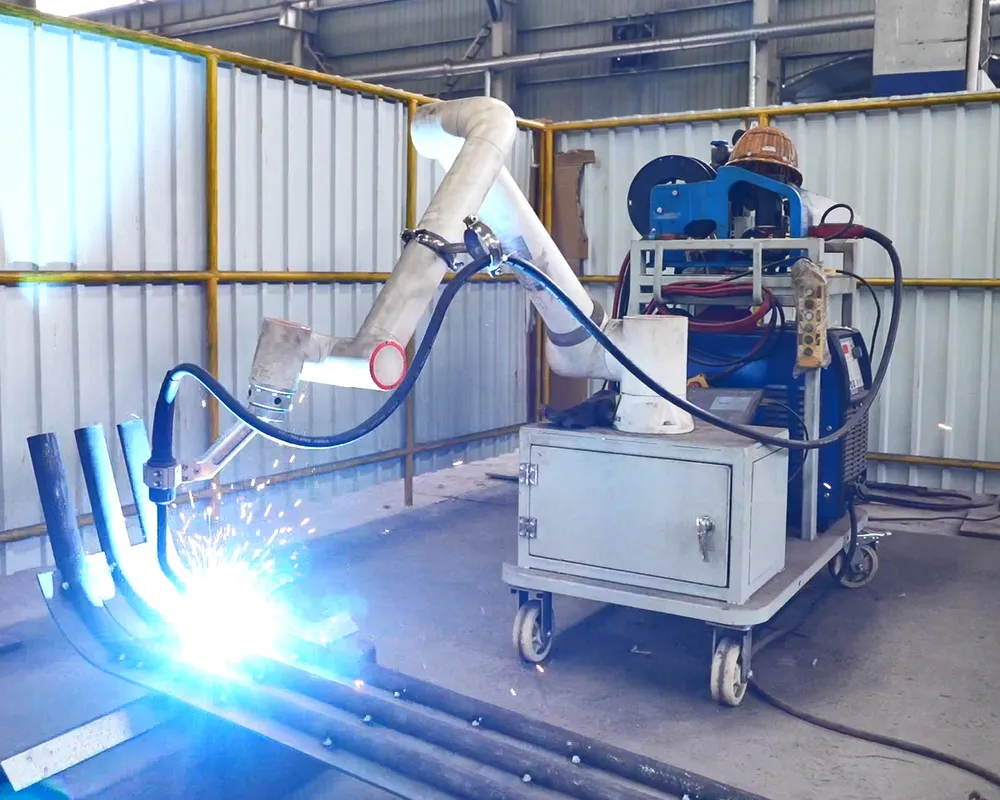

Robot welding

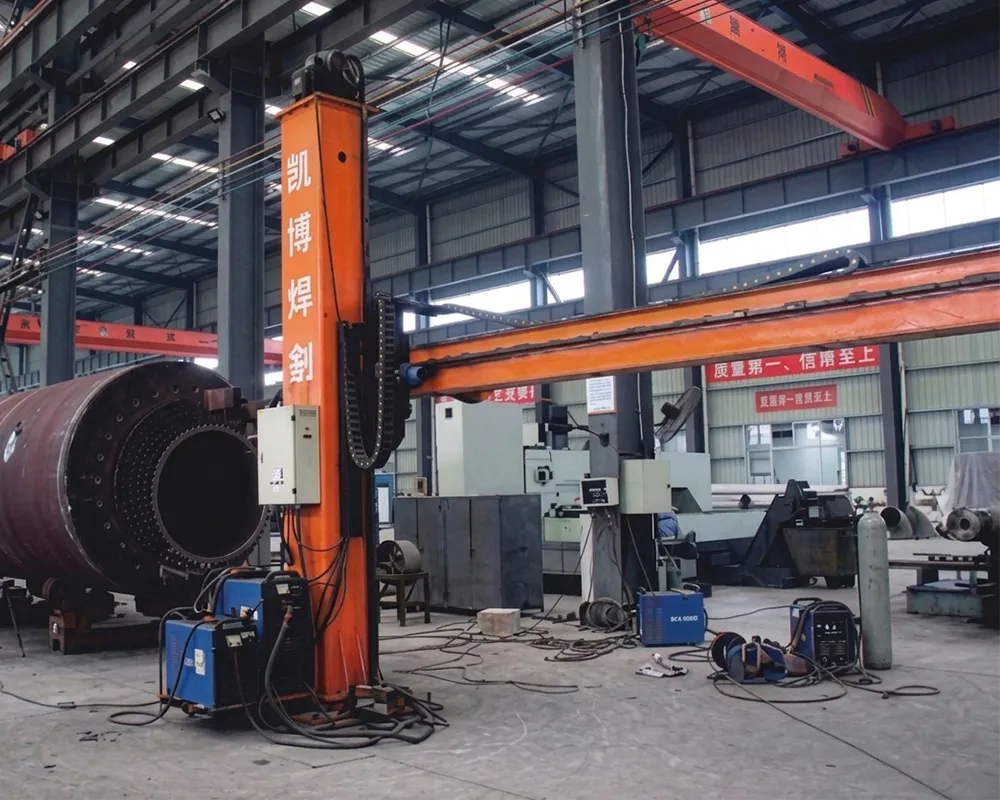

Automatic welding production line

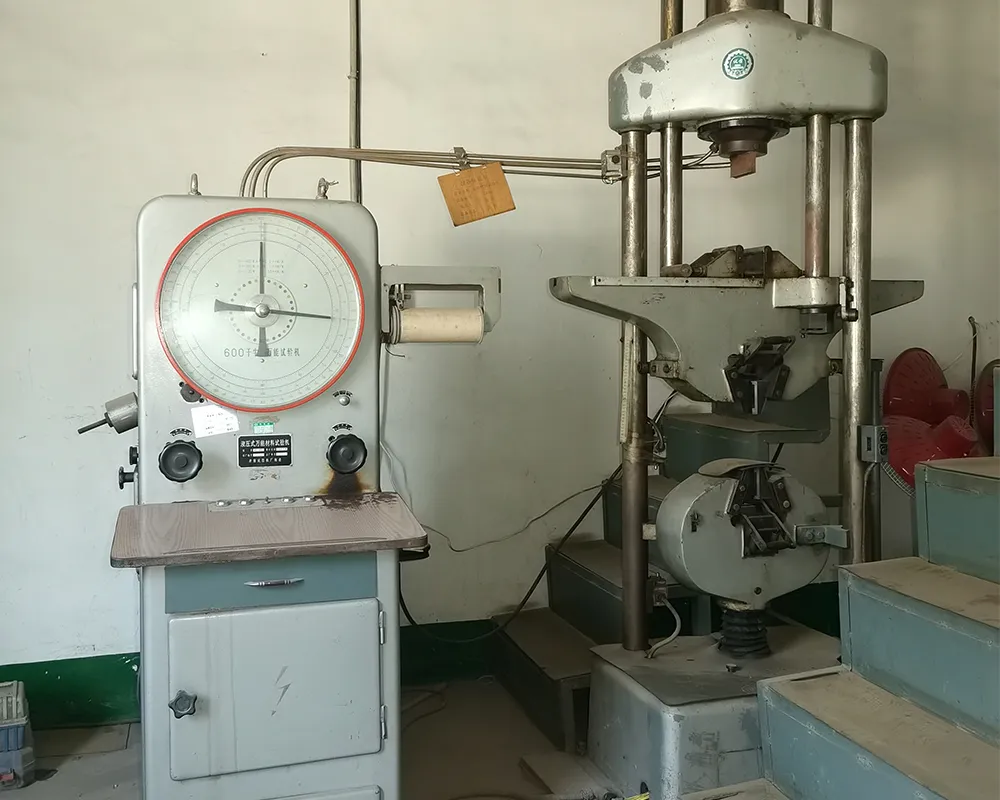

Mechanical experimental apparatus

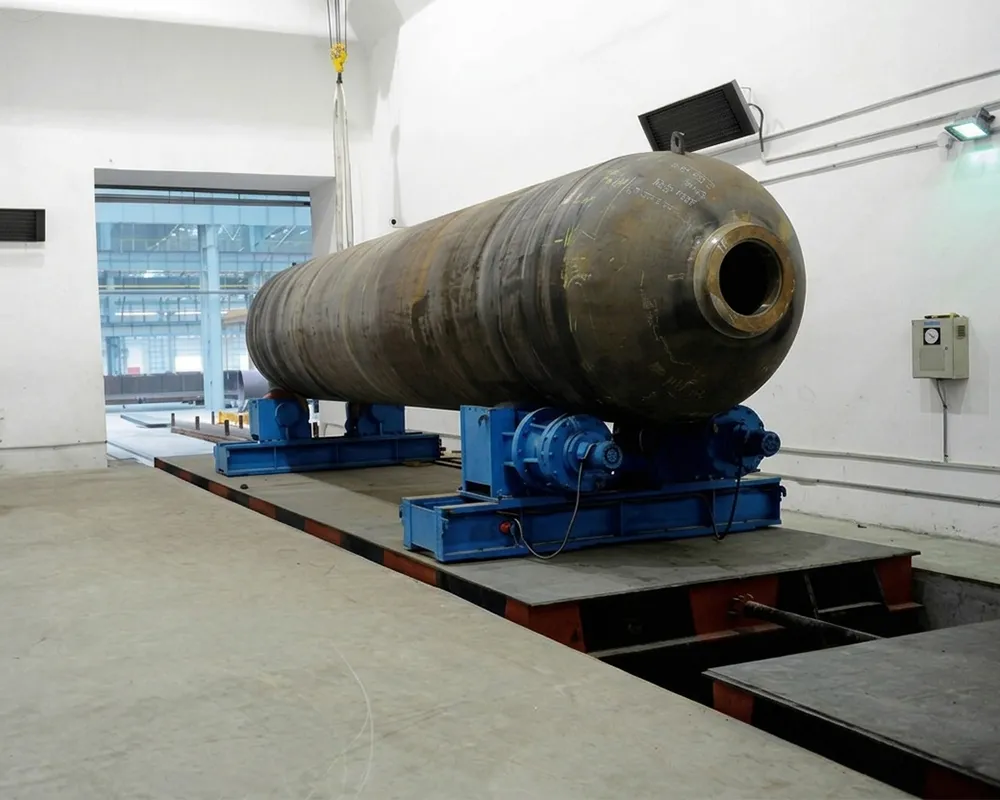

Non destructive testing workshop

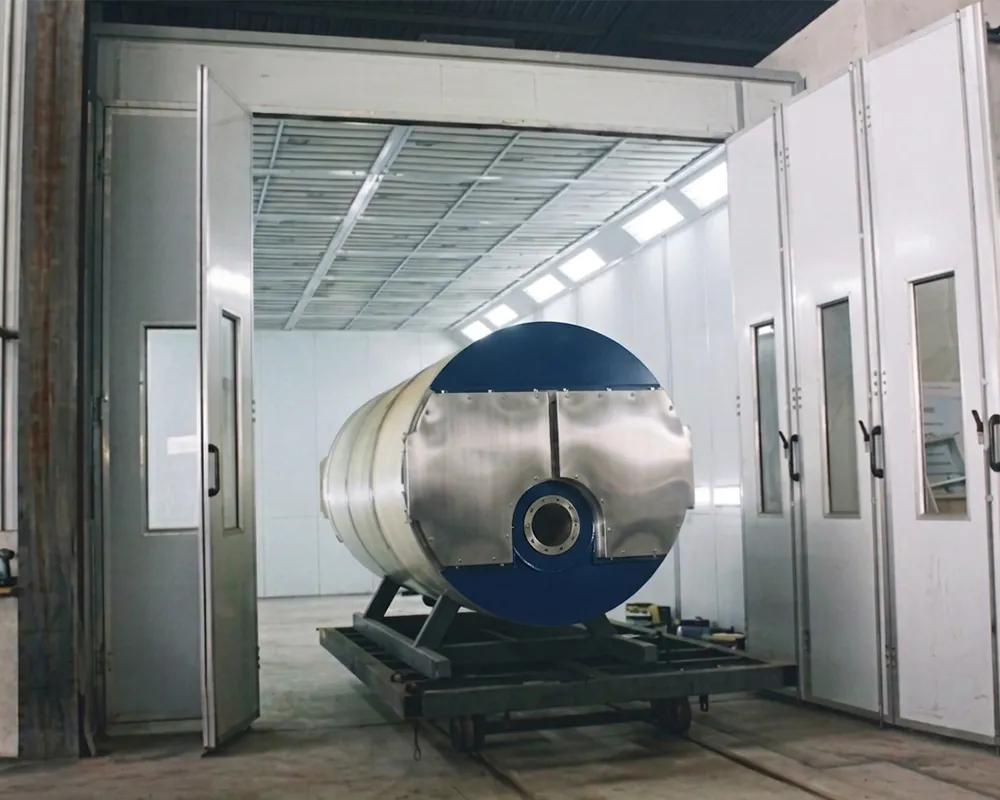

Paint workshop

Product Parameters

Biomass Steam Boiler Main Technical Parameters

Biomass Steam Boiler	YJLSG0.1	YJSG0.2	YJSG0.3	YJSG0.5	YJSG0.7	YJSG1	YJSG1.5	YJSG2
Steam Capacity(kg/h)	100	200	300	500	700	1000	1500	2000
Pressure(MPa)	0.09/0.4/0.7/1.0/1.25
Saturated steam Temperature(℃)	120/151/170/184/193
Feed-Water Temperature(℃)	20/60
Thermal efficiency (%)	>88
Type of Shipping	Separate / Skid mounted				Separate transport
Dimension(mm)	900	1000	1390	1500	1600	1950	2100	2300
	900	1000	1390	1500	1600	1950	2200	2400
	2100	2100	2400	2600	2800	2900	3000	3120
Shipping Weight(KGS)	1200	1600	2100	3100	3800	4100	5600	7000
