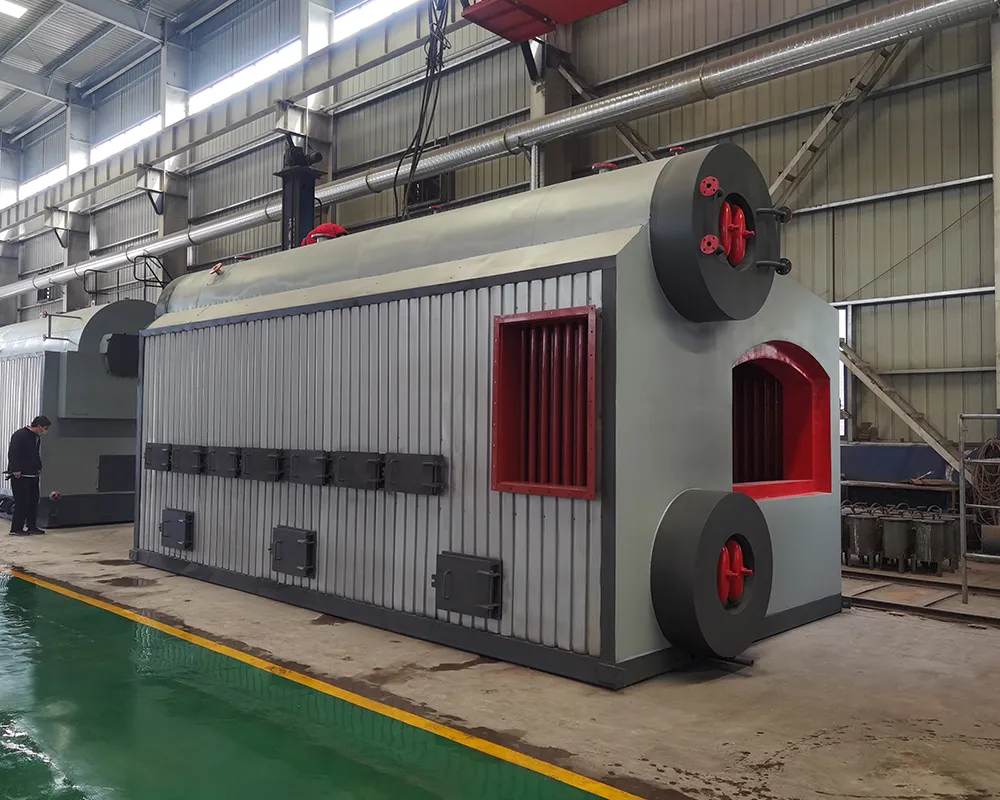

Biomass Gasification Combustion Boiler（SZS）
Product Advantage

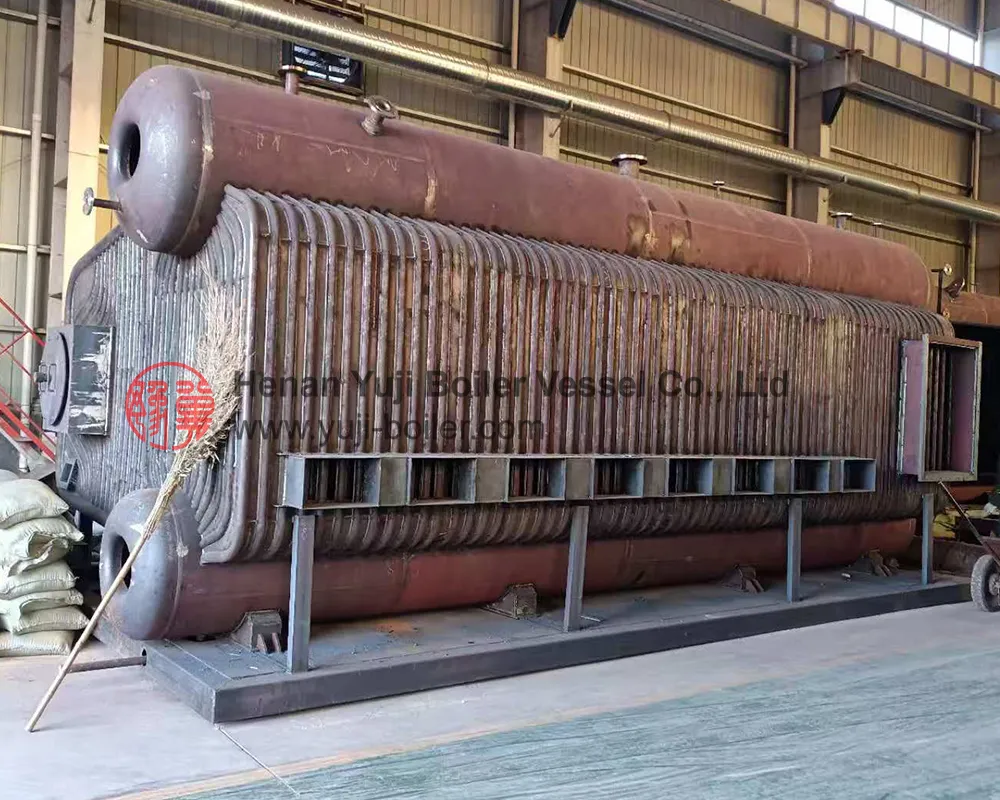

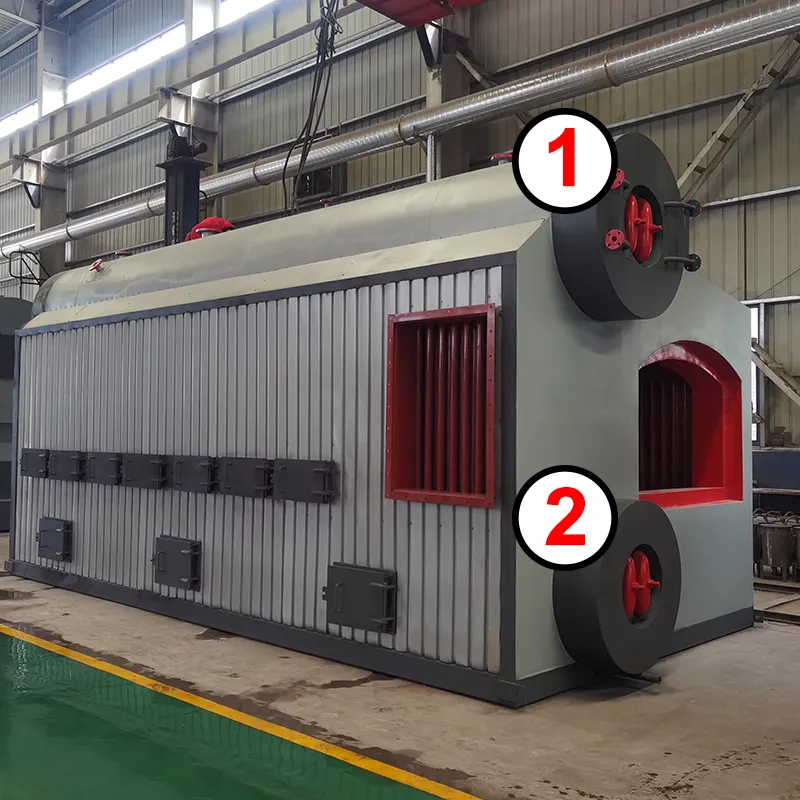

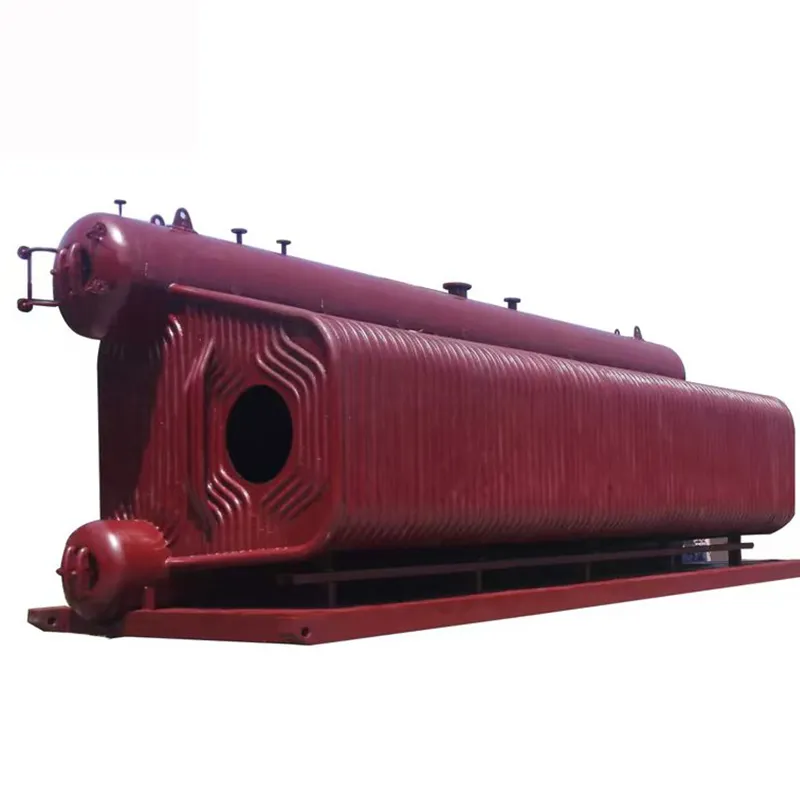

The biomass gasification combustion steam boiler is designed with two upper and lower drums and a D-type membrane furnace chamber, which has a large furnace space, sufficient combustion, and high combustion efficiency. Membrane fireplace chamber has good sealing performance and high thermal efficiency. Equipped with a fully automatic rotating grate biomass burner, it can achieve fully automatic and stable operation. Easily solve the problem of biomass coking. Biomass fuels with a moisture content below 40% can be directly gasified and burned without the need for drying treatment.
Fuel covers various biomass combustibles with extremely low cost

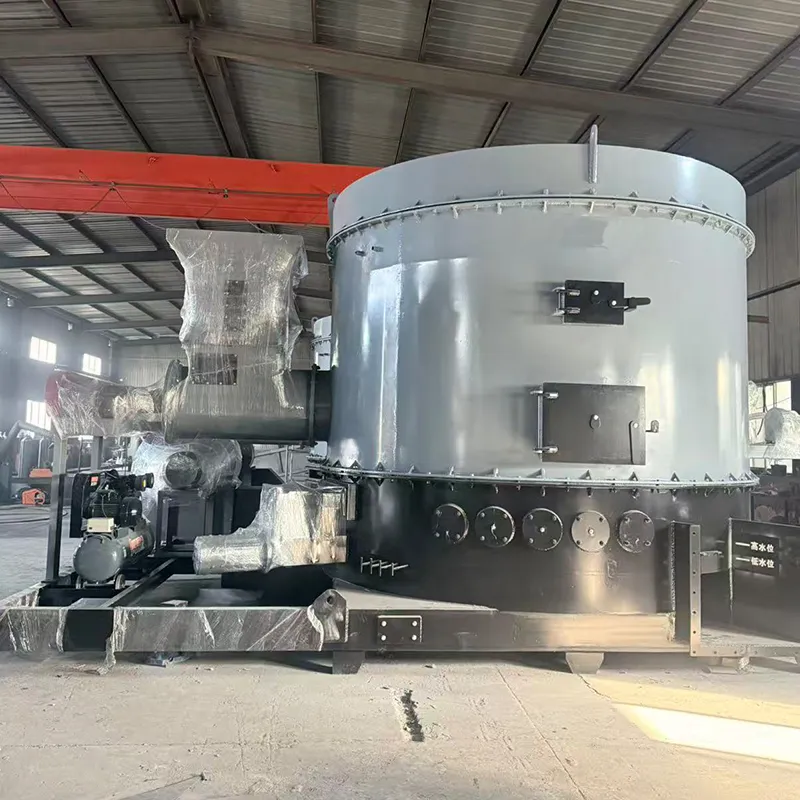

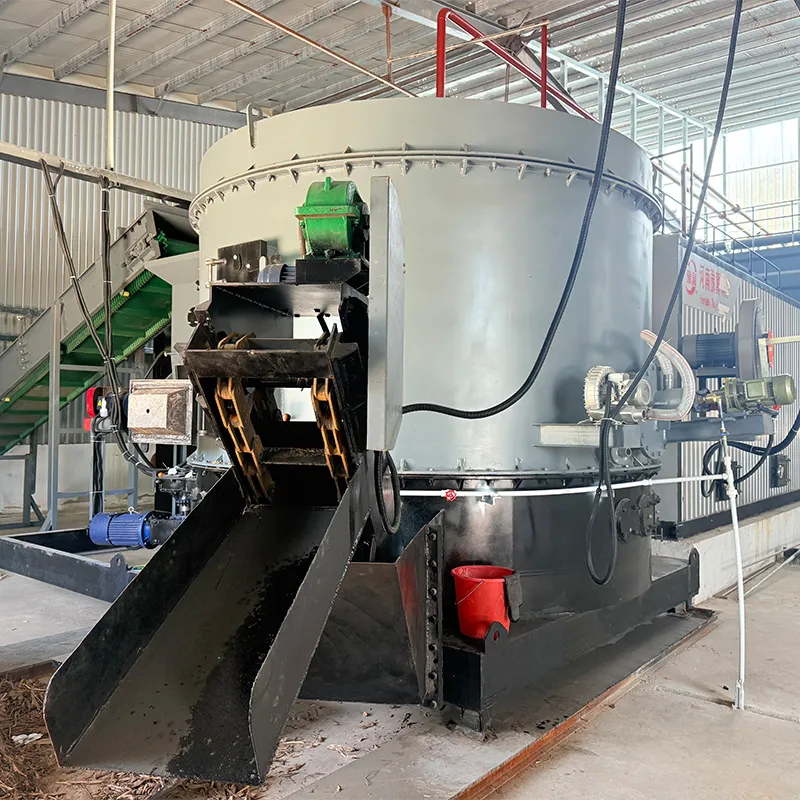

Rotating grate burner, Chinese national patent

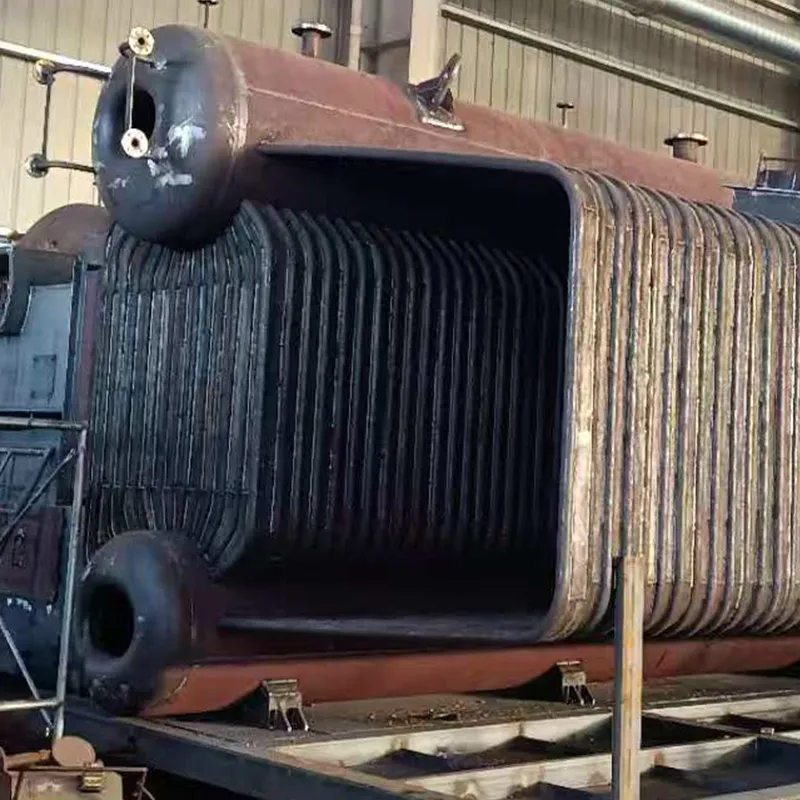

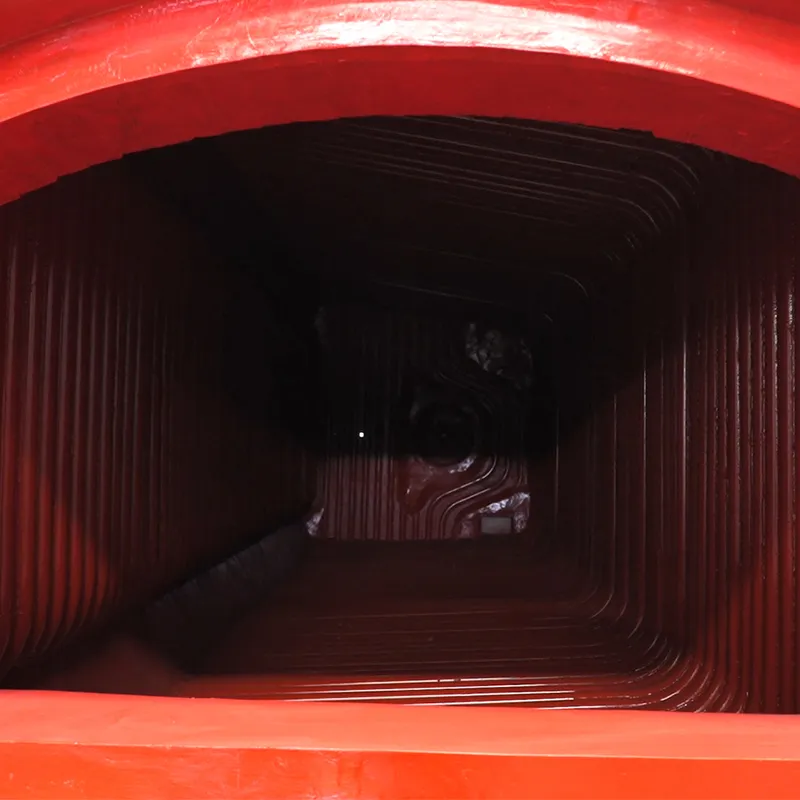

Large furnace space and high combustion efficiency Membrane fireplace chamber, with good sealing performance and high thermal efficiency

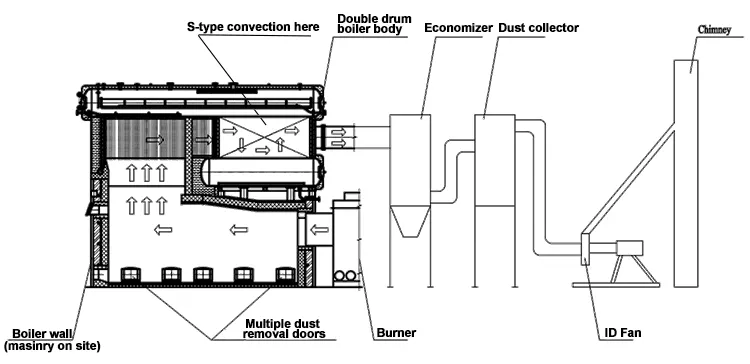

Product Structure
Product Parameters
SZS Series Biomass Gasification Combustion Boiler Main Technical Parameters
| Model | Rated steam | Rated steam | Steam temperature | Thermal efficiency | Oil | Gas | Dimension | Weight |
| capacity (t/h) | pressure (Mpa) | (℃) | (%) | (kg/h) | (Nm³/h) | (m) | (t) | |
| WNS1-0.7/1.0-Y(Q) | 1 | 0.7/1.0 | 194 | ≥98.36 | 61 | 73 | 3.2×1.9×2.2 | 4.9 |
| WNS2-1.0/1.25-Y(Q) | 2 | 1.0/1.25 | 194 | ≥98.36 | 121 | 145 | 4.2×2.3×2.5 | 8 |
| WNS3-1.0/1.25-Y(Q) | 3 | 1.0/1.25 | 194 | ≥98.36 | 182 | 217 | 4.5×2.1×2.4 | 9 |
| WNS4-1.0/1.25-Y(Q) | 4 | 1.0/1.25 | 194 | ≥98.36 | 243 | 289 | 5.0×2.3×2.6 | 11 |
| WNS6-1.25/1.6-Y(Q) | 6 | 1.25/1.6 | 194 | ≥98.36 | 367 | 435 | 5.4×2.4×2.7 | 18.6 |
| WNS10-1.25/1.6-Y(Q) | 10 | 1.25/1.6 | 194 | ≥98.36 | 601 | 735 | 6.3×2.7×3.2 | 20.5 |
| WNS15-1.25/1.6-Y(Q) | 15 | 1.25/1.6 | 194 | ≥98.36 | 906 | 1101 | 8.9×3.4×3.6 | 42 |
| WNS20-1.25/1.6-Y(Q) | 20 | 1.25/1.6 | 194 | ≥98.36 | 1211 | 1467 | 7.8×3.6×4.0 | 52 |
Customize Your Boiler Solution
Tell us your need for boiler capacity in your industry, we will recommend the most suitable boiler model for you!
